Front Side Trim Removal/Installation

  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.

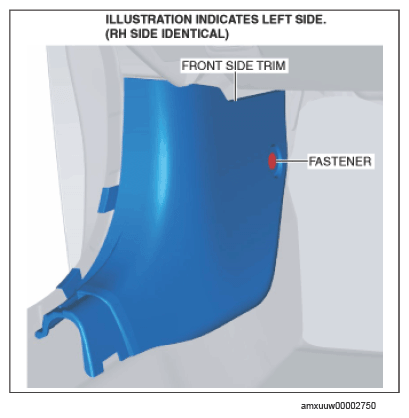

  3. Remove the fastener.
    G14603024Courtesy of MAZDA MOTORS CORP.
  4. Move the front side trim in the direction of the arrow shown in the illustration and detach the clip from the body panel.
    G14603025Courtesy of MAZDA MOTORS CORP.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.
