A-Pillar Trim Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

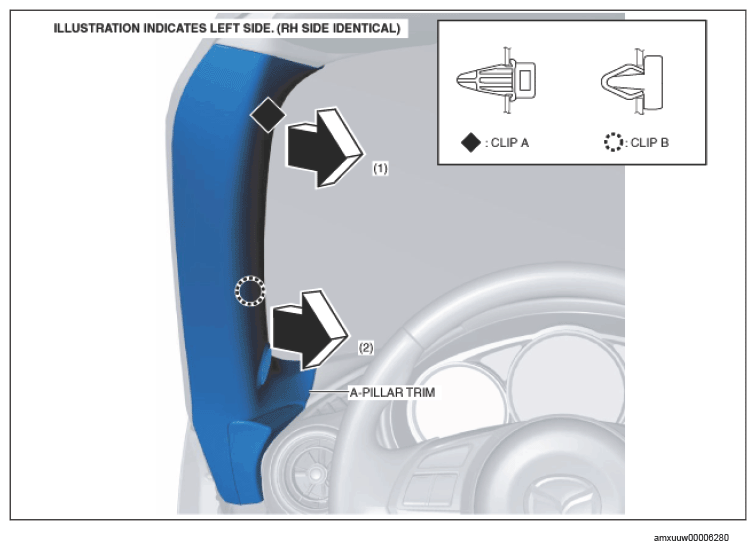

Move the A-pillar trim in the order of arrows (1) and (2) shown in the illustration, and detach clips A and B.

Courtesy of MAZDA MOTORS CORP.

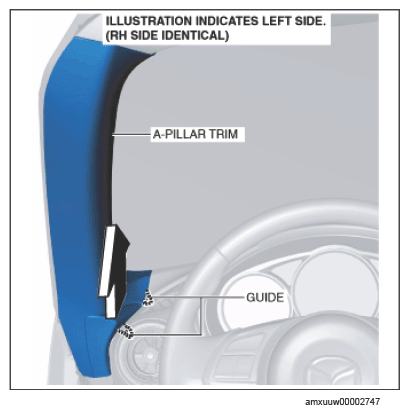

Pull the A-pillar trim in the direction of the arrows shown in the illustration and remove it while releasing the guides.

Courtesy of MAZDA MOTORS CORP.

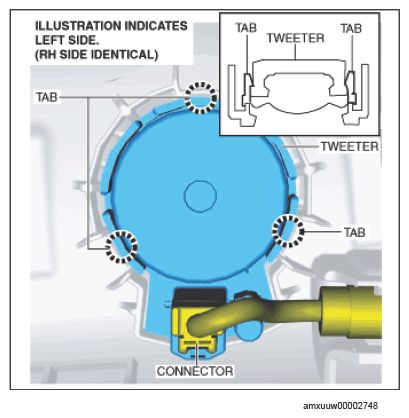

Release the tabs in the positions shown in the illustration and remove the tweeter from the A-pillar trim.
NOTE:
- The tweeter connector cannot be disconnected with the tweeter installed to the A-pillar trim.
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
To remove the lower A-pillar trim, release the tabs in the positions shown in the illustration and remove it from the A-pillar trim.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
