360° View Monitor System Location Index (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

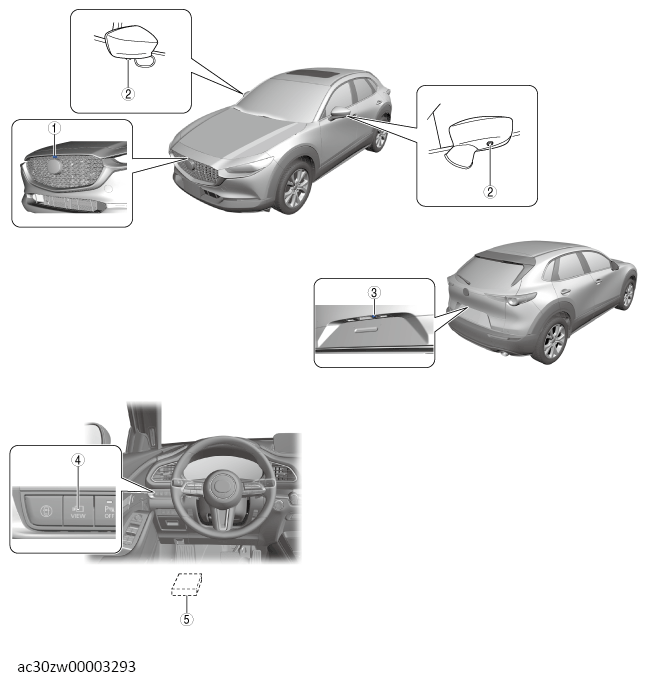

COMPONENT DESCRIPTION

1	Front camera (See FRONT CAMERA REMOVAL/INSTALLATION .) (See FRONT CAMERA INSPECTION .) (See 360°VIEW MONITOR SYSTEM AIMING .)
2	Side camera (See SIDE CAMERA REMOVAL/INSTALLATION .) (See SIDE CAMERA INSPECTION .) (See 360°VIEW MONITOR SYSTEM AIMING .)
3	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .) (See 360°VIEW MONITOR SYSTEM AIMING .)
4	360° view monitor switch (See 360°VIEW MONITOR SWITCH REMOVAL/INSTALLATION .) (See 360°VIEW MONITOR SWITCH INSPECTION .)
5	360° view monitor controle module (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION (US) .) (See 360°VIEW MONITOR CONTROL MODULE INSPECTION .) (See 360°VIEW MONITOR SYSTEM AIMING .)
