Front Camera Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION .)

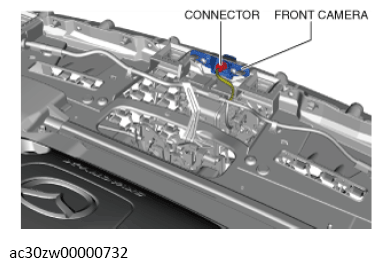

- Disconnect the connector.

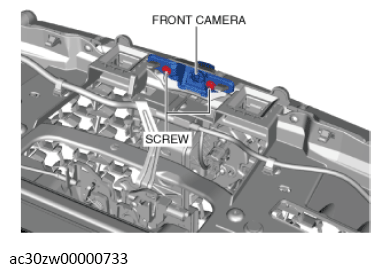

- Remove the screws.
- Remove the front camera.
- Install in the reverse order of removal.
- Perform the front camera aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
