Side Camera Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the following parts:
- Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
- Outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
- Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)

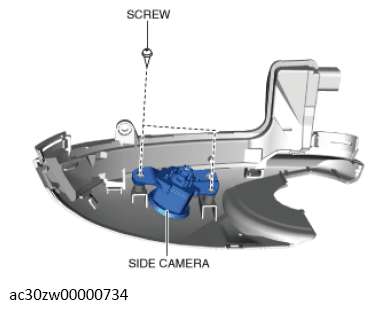

- Remove the screws.
- Remove the side camera.
- Install in the reverse order of removal.
- Perform side camera aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
