Hood Hinge Removal/Installation: Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolts shown in the illustration and install the hood hinge.

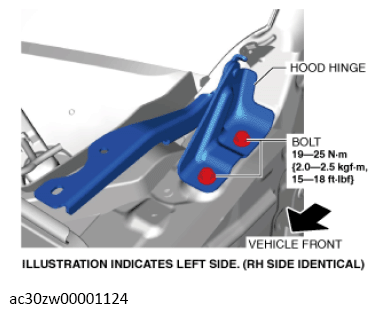

Fig 1: Hood Hinge Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Hood (See HOOD REMOVAL/INSTALLATION .)
2. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Front bumper slider No. 1 (See BUMPER SLIDER REMOVAL/INSTALLATION .)
5. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
6. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
Perform the hood adjustment. (See HOOD ADJUSTMENT .)
Install the following parts:
1. Side step molding (See SIDE STEP MOLDING INSTALLATION .)
2. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
3. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
4. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
5. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
Perform the front door adjustment. (See DOOR ADJUSTMENT .)
Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
