Trunk Side Trim Removal/Installation (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
6. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
9. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
10. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)

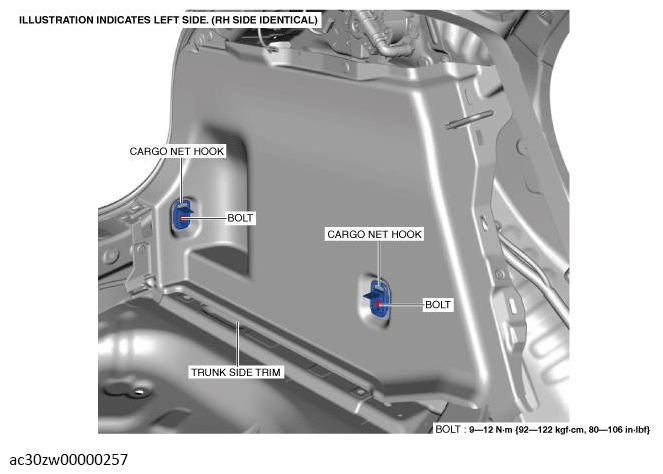

Remove the bolts.

Fig 1: Trunk Side Trim, Cargo Net Hooks And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the cargo net hooks.

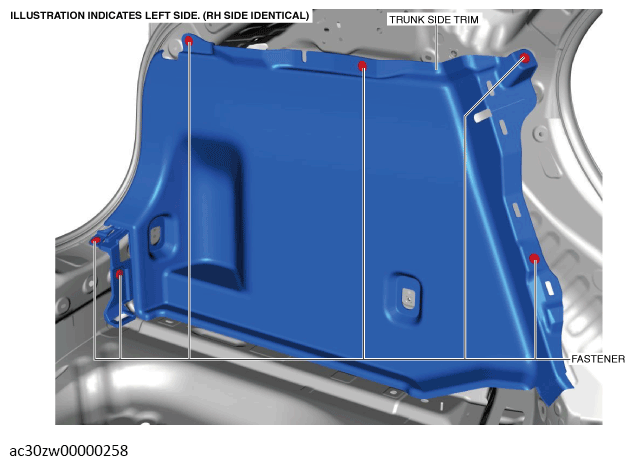

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

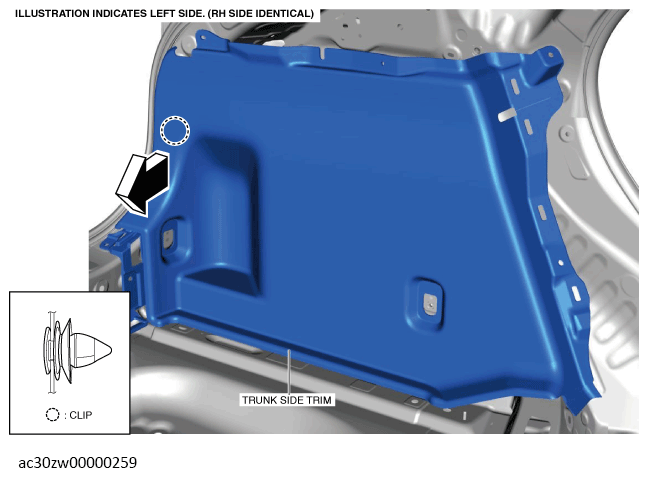

Move the trunk side trim in the direction of the arrow shown in the illustration while detaching the clip. (See TRUNK SIDE TRIM INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Remove the trunk side trim.
Install in the reverse order of removal.
