Trunk Side Trim Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

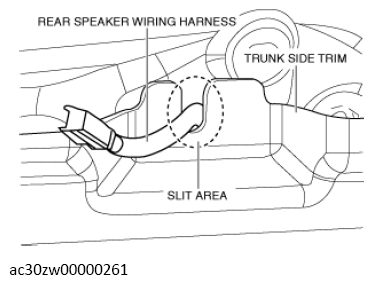

- If the rear speaker wiring harness is routed incorrectly, the trunk side upper trim will interfere with the rear speaker wiring harness when installing the trunk side upper trim which could damage the rear speaker wiring harness. When routing the rear speaker wiring harness, route it through the slit area shown in the illustration. (RH only)
