Front Drive Shaft (Tripod Joint) Disassembly/Assembly (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Special service tool (SST)

49 H027 002 Bearing remover	Courtesy of MAZDA MOTORS CORP.	49 T025 001 Boot clamp crimpers	Courtesy of MAZDA MOTORS CORP.	49 UB71 525 Bearing installer	Courtesy of MAZDA MOTORS CORP.
49 W032 310 Support block	Courtesy of MAZDA MOTORS CORP.	49 0710 520 Bearing puller	Courtesy of MAZDA MOTORS CORP.	-

Replacement part

Boot band (transaxle side) Quantity: 2 Location of use: Boot (transaxle side)	Dust cover Quantity: 1 Location of use: Outer ring	Snap ring Quantity: 1 Location of use: Outer ring
Bearing Quantity: 1 Location of use: Outer ring	Snap ring Quantity: 1 Location of use: Tripod joint	Boot (transaxle side) Quantity: 1 Location of use: Front drive shaft (transaxle side)
Boot band (wheel side) Quantity: 2 Location of use: Boot (wheel side)	Boot (wheel side) Quantity: 1 Location of use: Front drive shaft (wheel side)	-

Oil and chemical type

Grease

Type: Maintenance parts

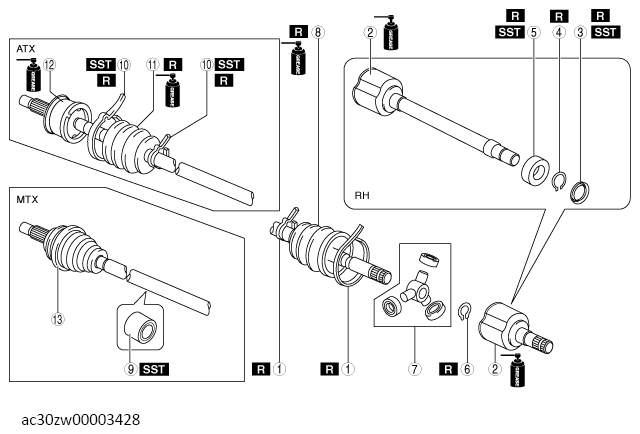

Disassemble in the order shown in the illustration.
Assemble in the reverse order of disassembly.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot band (transaxle side) (See BOOT BAND (TRANSAXLE SIDE) DISASSEMBLY NOTE .) (See BOOT BAND (TRANSAXLE SIDE) ASSEMBLY NOTE .)
2	Outer ring (See OUTER RING DISASSEMBLY NOTE .) (See OUTER RING ASSEMBLY NOTE .)
3	Dust cover (With dust cover) (See DUST COVER DISASSEMBLY NOTE .) (See DUST COVER ASSEMBLY NOTE .)
4	Snap ring
5	Bearing (See BEARING DISASSEMBLY NOTE .) (See BEARING ASSEMBLY NOTE .)
6	Snap ring (See SNAP RING, TRIPOD JOINT DISASSEMBLY NOTE .) (See TRIPOD JOINT, SNAP RING ASSEMBLY NOTE .)
7	Tripod joint (See SNAP RING, TRIPOD JOINT DISASSEMBLY NOTE .) (See TRIPOD JOINT, SNAP RING ASSEMBLY NOTE .)
8	Boot (transaxle side) (See BOOT (TRANSAXLE SIDE) DISASSEMBLY NOTE .) (See BOOT (TRANSAXLE SIDE) ASSEMBLY NOTE .)
9	Dynamic damper (With dynamic damper) (See DYNAMIC DAMPER DISASSEMBLY NOTE [MTX] .) (See DYNAMIC DAMPER ASSEMBLY NOTE [MTX] .)
10	Boot band (wheel side) (See BOOT BAND (WHEEL SIDE) DISASSEMBLY NOTE .) (See BOOT BAND (WHEEL SIDE) ASSEMBLY NOTE .)
11	Boot (wheel side) (See BOOT (WHEEL SIDE) DISASSEMBLY NOTE .) (See BOOT (WHEEL SIDE) ASSEMBLY NOTE .)
12	Shaft and ball joint component
13	Outer joint component
