Tripod Joint, Snap Ring Assembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be careful not to scratch the roller area when using a hammer and urethane bar or equivalent. Otherwise, the part could be damaged.

NOTE:

If the tripod joint cannot be assembled to the shaft, lightly tap the tripod joint evenly using a hammer and urethane bar or equivalent, and assemble the tripod joint to the shaft.

Assemble the tripod joint with the shaft and tripod joint alignment marks aligned.

Courtesy of MAZDA MOTORS CORP.

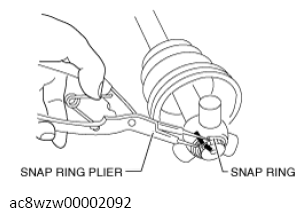

Assemble a new snap ring using snap ring pliers.

Courtesy of MAZDA MOTORS CORP.
Verify that the snap ring is assembled correctly in the groove of the shaft.
