Dynamic Damper Assembly Note [MTX]

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Apply soapy water to the inside of the dynamic damper.

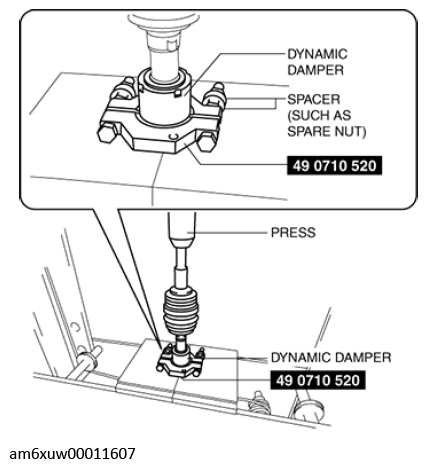

Assemble the dynamic damper using the SST, spacers (such as spare nuts), and a press.

Courtesy of MAZDA MOTORS CORP.
Verify that the installation position of the dynamic damper is within the specification.

Courtesy of MAZDA MOTORS CORP.

Specification

DYNAMIC DAMPER POSITION SPECIFICATION

Engine type	Installation position
SKYACTIV-G 2.0	LH	266.3-272.3 mm {10.49-10.72 in}
SKYACTIV-G 2.0	RH	147.0-153.0 mm {5.788-6.023 in}
