Boot Band (Wheel Side) Assembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Adjust opening A of the SST to the standard by rotating the adjustment bolt.

Courtesy of MAZDA MOTORS CORP.

Standard

Approx. 4.5 mm {0.18 in}

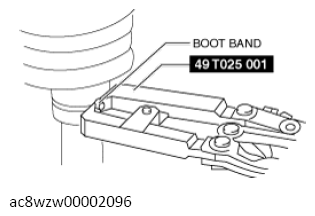

Crimp the boot band using the SST.

Courtesy of MAZDA MOTORS CORP.
Verify that crimp B of the boot band is within the standard.

Courtesy of MAZDA MOTORS CORP.

Standard

2.0-3.0 mm {0.08-0.11 in}
- If width B of the crimp exceeds the standard, reduce opening width A of the SST and crimp the boot band again.
- If crimp B is less than the standard, increase opening A of the SST and crimp a new boot band.
Verify that the boot band does not protrude from the band assembly area.
- If the boot band protrudes from the assembly area, replace it with a new one and repeat Steps 1 to 3.
