Dashboard Removal (Us)

Replacement part

Bolt
Quantity: 1
Location use: Dashboard
WARNING:
  • Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module.
  1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    8. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Shift lever knob (MTX)
    10. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    18. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    19. Driver-side knee air bag module
    20. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    21. Driver-side air bag module
    22. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    23. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    24. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    25. Clock spring
    26. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
    27. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
    28. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    29. Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    30. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    31. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    32. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    33. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    34. Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION .)
    35. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .)
    36. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    37. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
    38. Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
    39. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    40. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

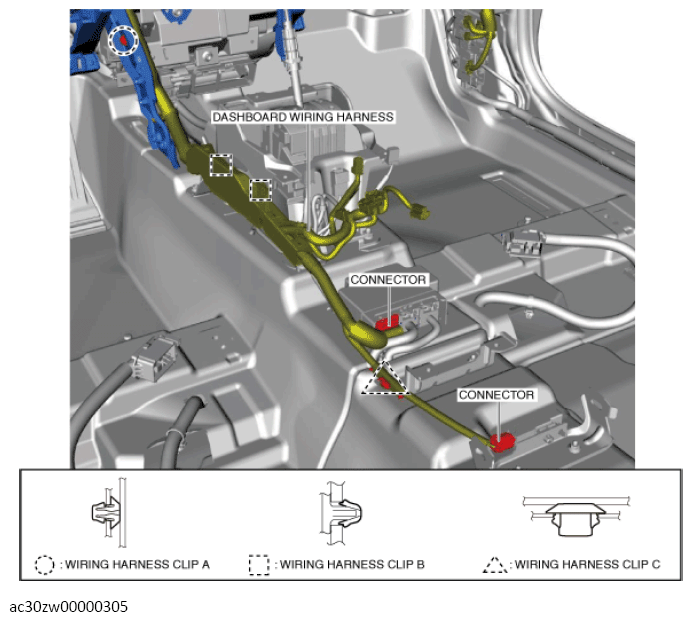

  3. Disconnect the connectors and remove wiring harness clips A, B and C.
    G13560664Courtesy of MAZDA MOTORS CORP.

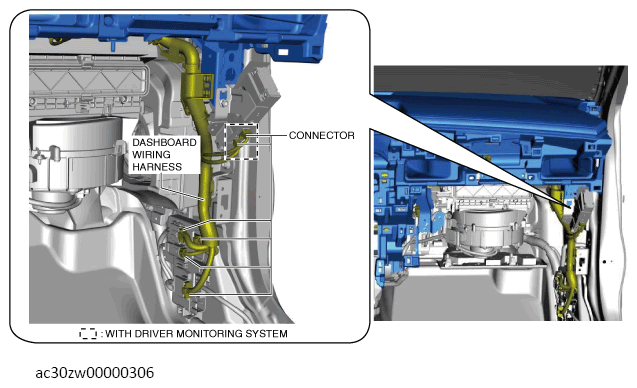

  4. Disconnect the connectors.
    G13560665Courtesy of MAZDA MOTORS CORP.

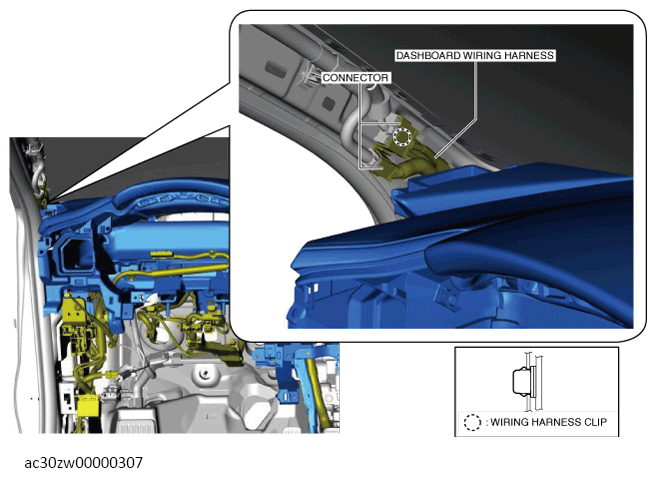

  5. Disconnect the connectors and remove wiring harness clip.
    G13560666Courtesy of MAZDA MOTORS CORP.

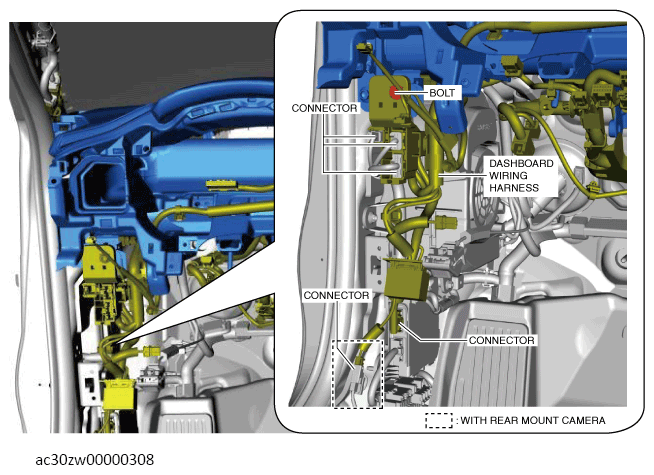

  6. Remove the bolt.
    G13560667Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the connectors.

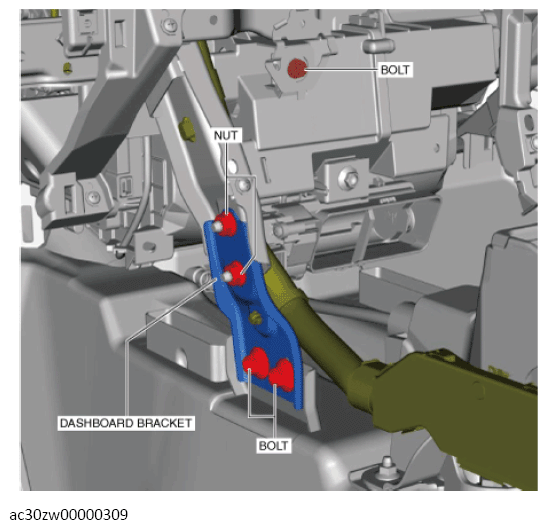

  8. Remove the bolts and nuts shown in the illustration.
    G13560668Courtesy of MAZDA MOTORS CORP.
  9. Remove the dashboard bracket.

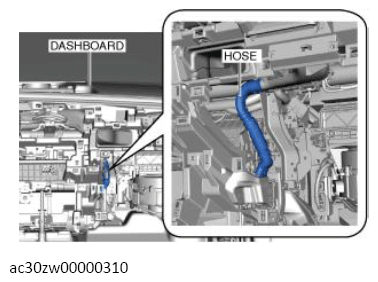

  10. Remove the hose.
    G13560669Courtesy of MAZDA MOTORS CORP.

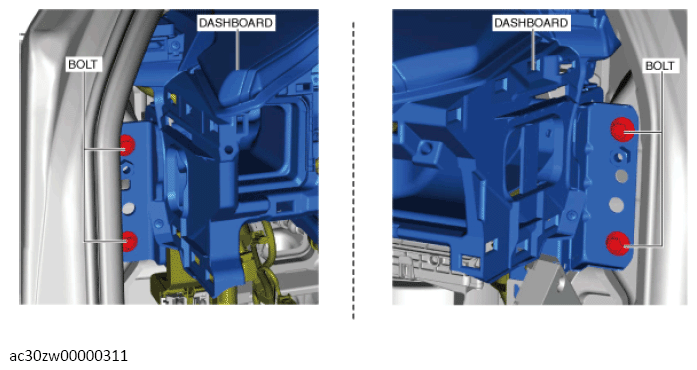

  11. Remove the bolts.
    G13560670Courtesy of MAZDA MOTORS CORP.

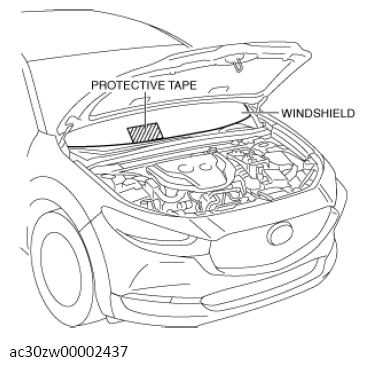

  12. To prevent scratches or damage, affix protective tape to the position shown in the illustration of the windshield.
    G13560671Courtesy of MAZDA MOTORS CORP.

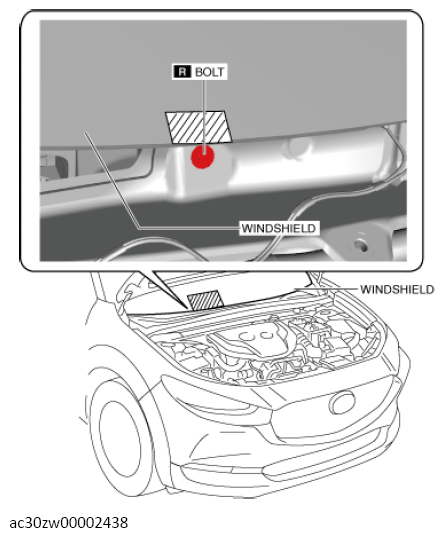

  13. Remove the bolt.
    G13560672Courtesy of MAZDA MOTORS CORP.

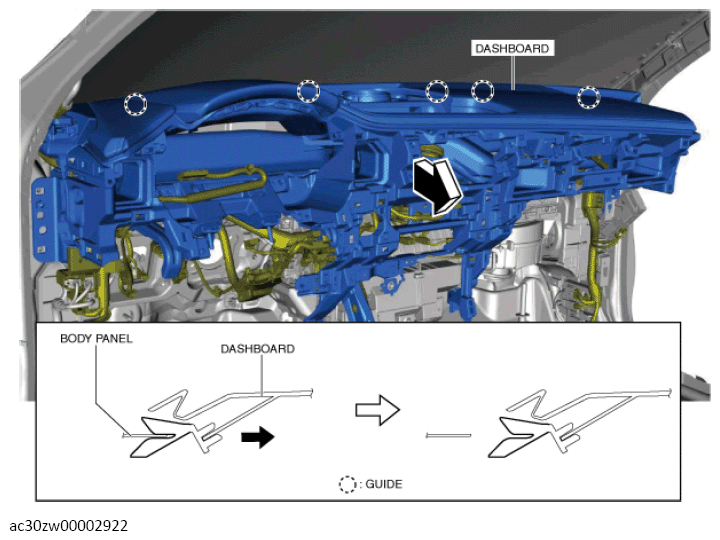

  14. Move the dashboard in the direction of the arrow shown in the illustration, then remove the guides.
    G13560673Courtesy of MAZDA MOTORS CORP.

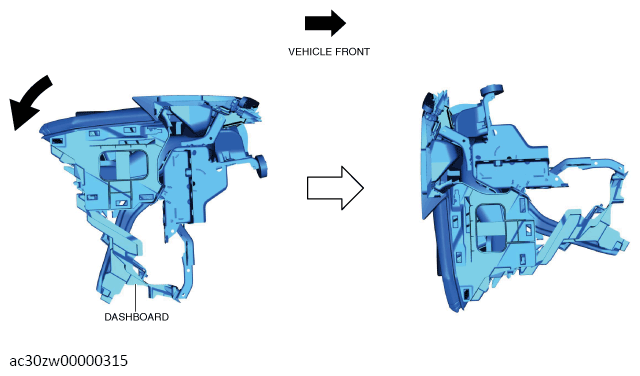

  15. Rotate the dashboard in the direction shown in the illustration.
    G13560674Courtesy of MAZDA MOTORS CORP.
  16. Take the dashboard off from the front driver-side door or front passenger-side door opening.
