Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION [(US)] .)

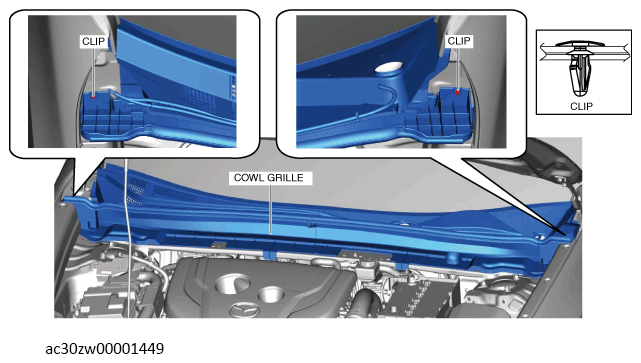

  3. Remove the clips.
    G13560498Courtesy of MAZDA MOTORS CORP.

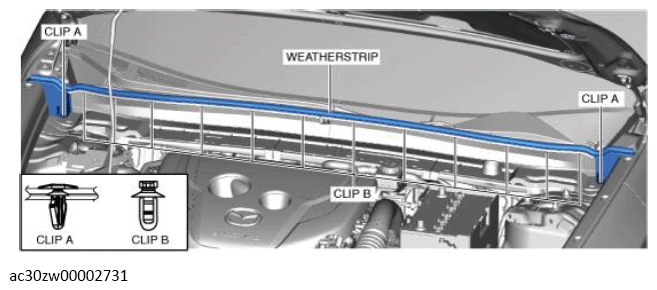

  4. Remove clips A and B. (when removing the weatherstrip)
    G13560499Courtesy of MAZDA MOTORS CORP.
  5. Remove the weatherstrip. (when removing the weatherstrip)

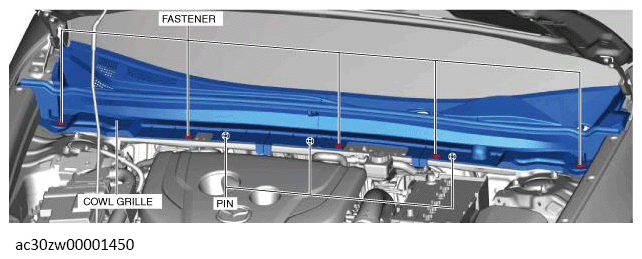

  6. Remove the fasteners.
    G13560500Courtesy of MAZDA MOTORS CORP.
  7. Detach the pins.

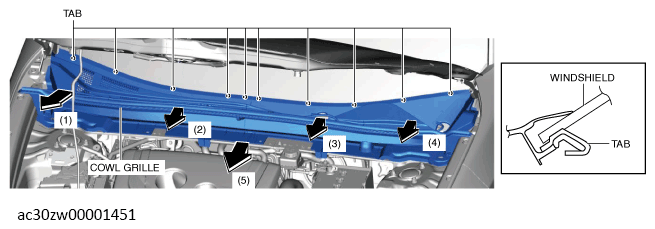

  8. Pull the cowl grille in the direction of the arrow in the order of (1), (2), (3), (4), (5) and remove it while detaching the tabs.
    G13560501Courtesy of MAZDA MOTORS CORP.
  9. When removing the side cowl grille, perform the following procedure:

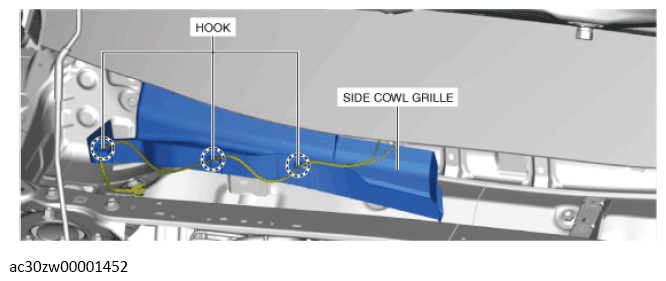

    1. Remove the windshield wiper de-icer wiring harness from the hooks. (with windshield wiper deicer)
      G13560502Courtesy of MAZDA MOTORS CORP.

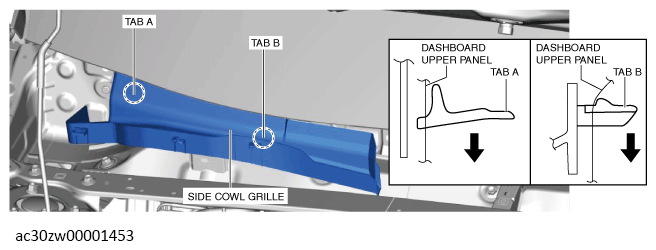

    2. Pull the tabs A and B in the direction of the arrow shown in the illustration and detach the tabs A and B from the dashboard upper panel.
      G13560503Courtesy of MAZDA MOTORS CORP.

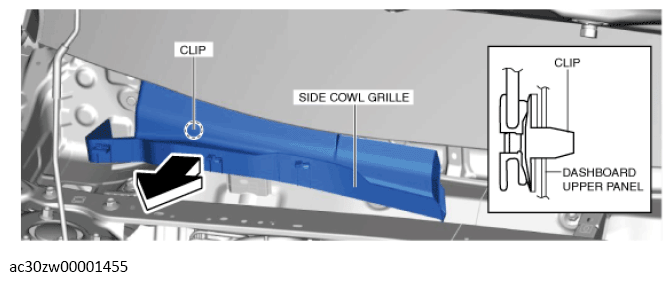

    3. Remove the side cowl grille in the direction of the arrow shown in the illustration while detaching the clip from the dashboard upper panel.
      G13560504Courtesy of MAZDA MOTORS CORP.

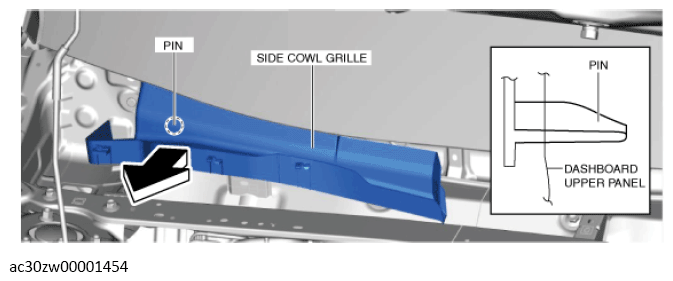

    4. Pull the side cowl grille in the direction of the arrow shown in the illustration while pulling out the pin.
    G13560505Courtesy of MAZDA MOTORS CORP.
  10. Remove the side cowl grille.
  11. Install the removed clip to the side cowl grille.
  12. Install in the reverse order of removal.
