Cup Holder Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Shift lever knob (MTX)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

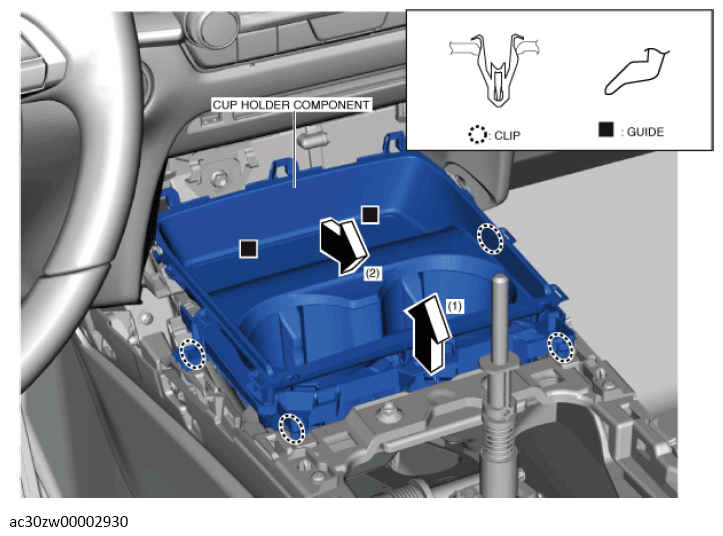

  3. Move the cup holder in the order of arrows (1) and (2) shown in the illustration, and remove it while detaching the clips and guides.
    G13560646Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
