Dashboard Installation (Us)

Replacement part

Bolt
Quantity: 1
Location use: Dashboard

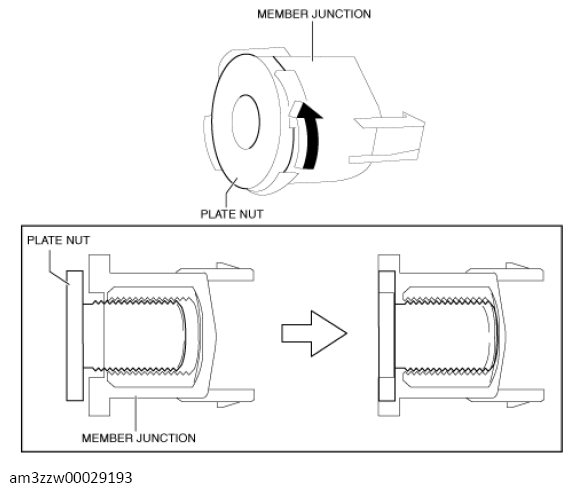

  1. Rotate the plate nuts by hand in the direction of the arrow shown in the illustration until they are seated.
    CAUTION:
    • After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.
    • If the plate nuts are tightened completely when installing bolts, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
    NOTE:
    • If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.
    G13560650Courtesy of MAZDA MOTORS CORP.

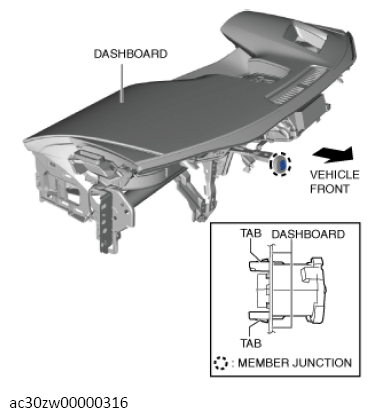

  2. Verify that the member junction tabs are engaged with the dashboard.
    CAUTION:
    • If the member junction tabs become disengaged from the dashboard when inserting the dashboard into the cabin, the member junction could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.
    G13560651Courtesy of MAZDA MOTORS CORP.
  3. Insert the dashboard from the front driver-side door or front passenger-side door opening.

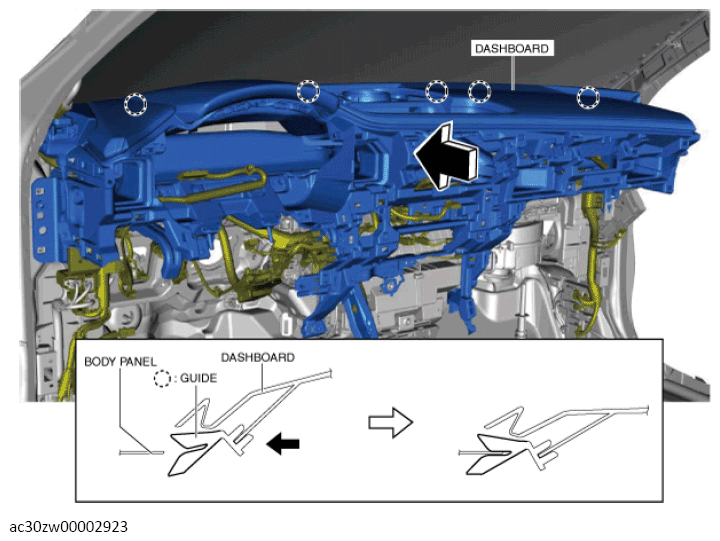

  4. Move the dashboard in the direction of the arrow shown in the illustration, align it with the guides on the body panel, and set it.
    G13560652Courtesy of MAZDA MOTORS CORP.

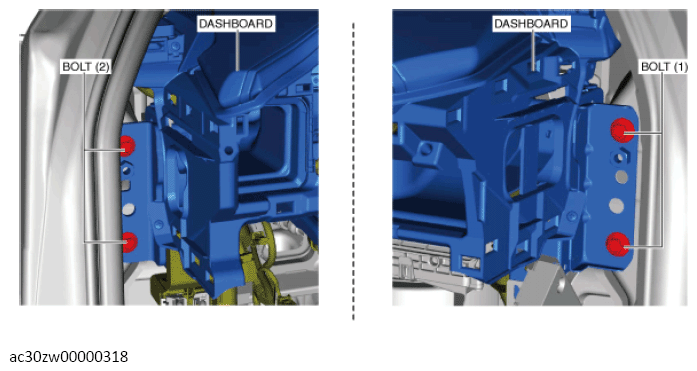

  5. Tighten the bolts (1) temporarily.
    G13560653Courtesy of MAZDA MOTORS CORP.
  6. Tighten the bolts (2) temporarily.

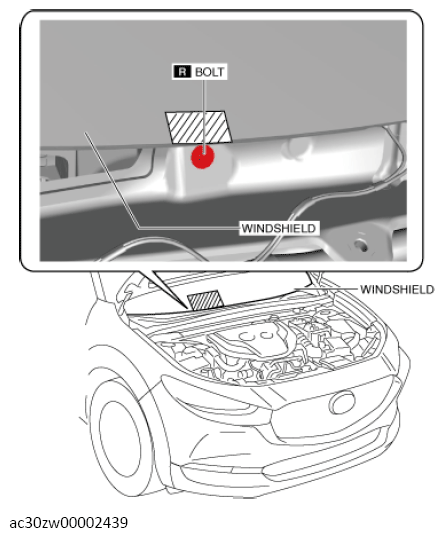

  7. Tighten the bolt temporarily.
    CAUTION:
    • If the bolts are reused, the plate nuts of the member junctions may not move causing damage to the member junction tabs and the vehicle body. Always replace the bolts with new ones.
    G13560654Courtesy of MAZDA MOTORS CORP.

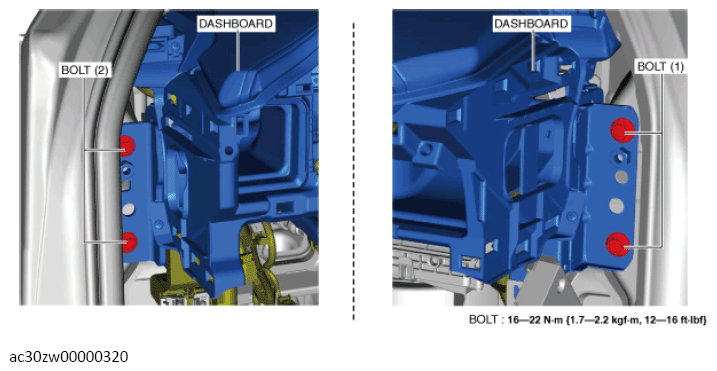

  8. Install the bolt (1).
    Fig 1: Dashboard Bolts With Torque Specification
    G13560655Courtesy of MAZDA MOTORS CORP.
  9. Install the bolt (2).

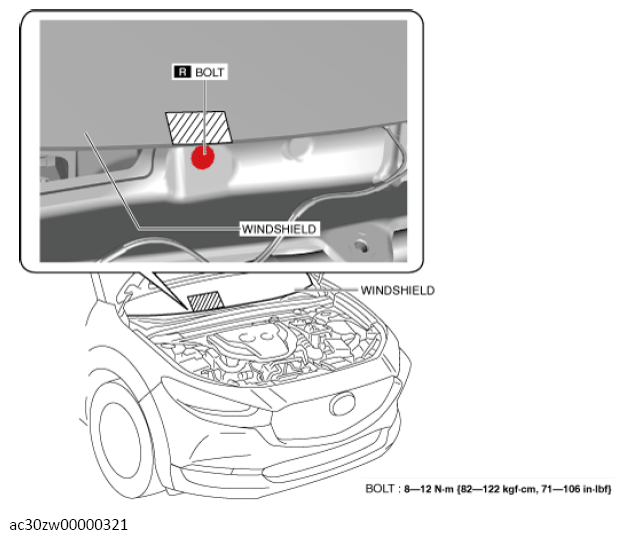

  10. Install the bolt.
    Fig 2: Windshield And Bolt With Torque Specification
    G13560656Courtesy of MAZDA MOTORS CORP.

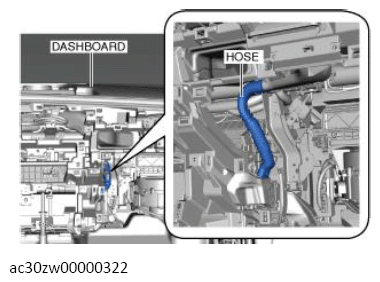

  11. Install the hose.
    G13560657Courtesy of MAZDA MOTORS CORP.

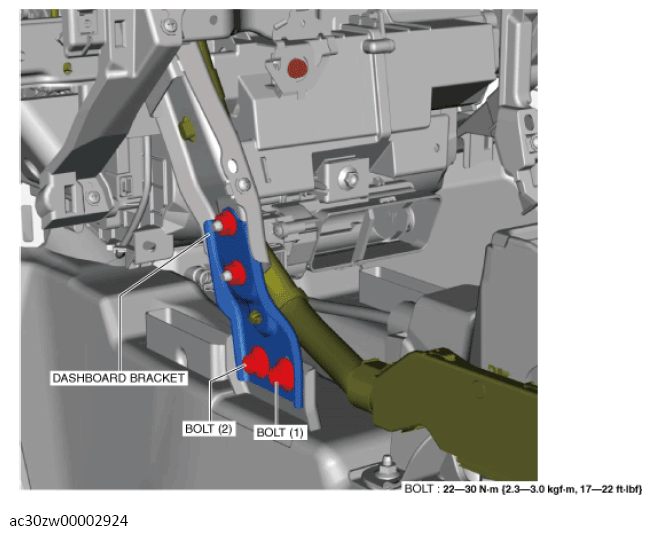

  12. Install the dashboard bracket.
    Fig 3: Dashboard Bracket And Bolts With Torque Specification
    G13560658Courtesy of MAZDA MOTORS CORP.

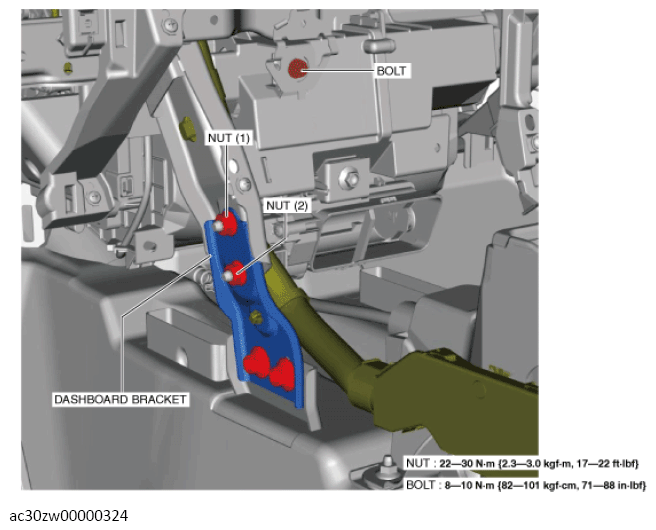

  13. Install the bolt (1).
  14. Install the bolt (2).
  15. Install the nut (1).
    Fig 4: Dashboard Bracket, Bolt And Nuts With Torque Specification
    G13560659Courtesy of MAZDA MOTORS CORP.
  16. Install the nut (2).
  17. Install the bolt.

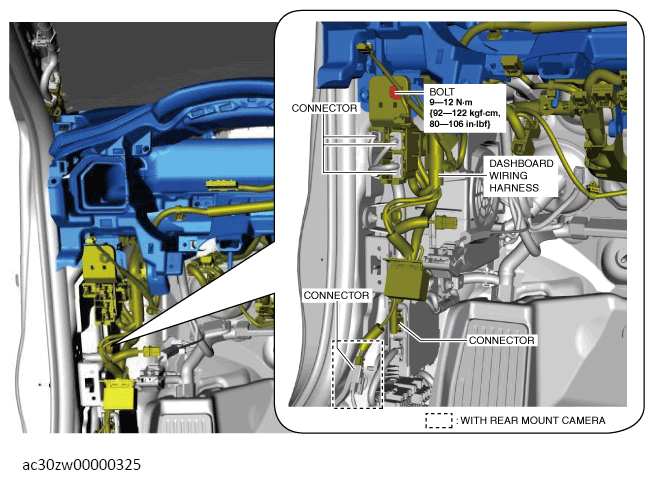

  18. Connect the connectors.
    Fig 5: Dashboard Wiring Harness, Connectors And Bolt With Torque Specification
    G13560660Courtesy of MAZDA MOTORS CORP.
  19. Install the bolt.

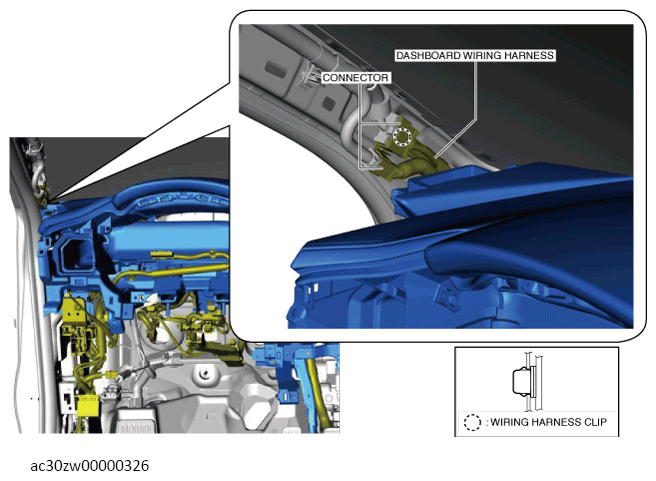

  20. Connect the connectors and install wiring harness clip.
    G13560661Courtesy of MAZDA MOTORS CORP.

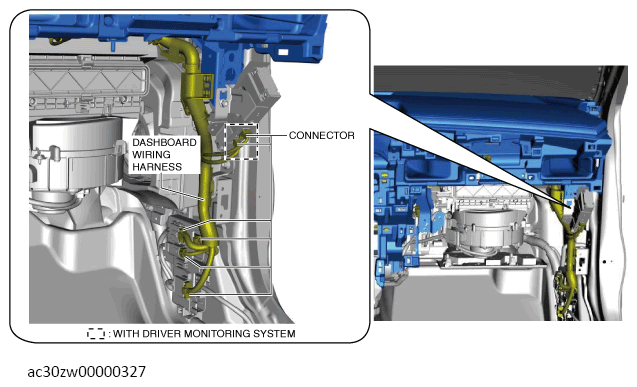

  21. Connect the connectors.
    G13560662Courtesy of MAZDA MOTORS CORP.

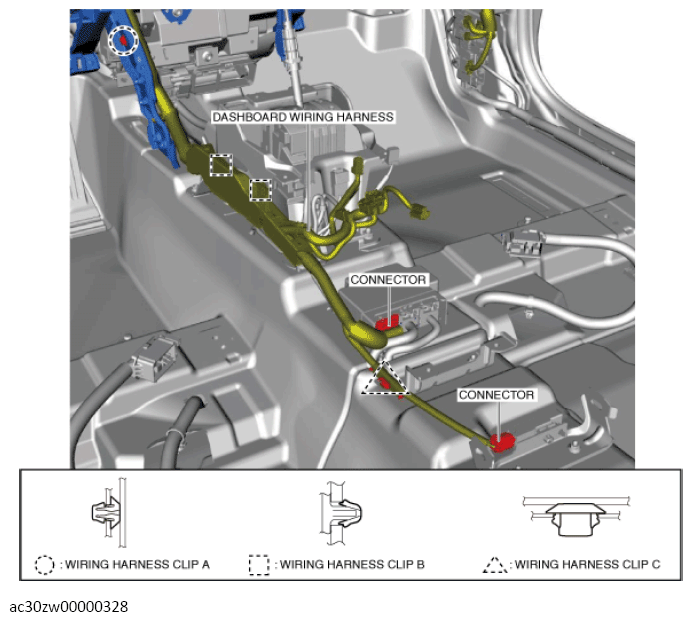

  22. Connect the connector and install wiring harness clips A, B and C.
    G13560663Courtesy of MAZDA MOTORS CORP.
  23. Install the following parts:
    1. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    2. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    3. Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
    4. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
    5. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    6. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .)
    7. Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION .)
    8. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    9. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    10. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    11. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    12. Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    13. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    14. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
    15. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
    16. Clock spring
    17. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    18. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    20. Driver-side air bag module
    21. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    22. Driver-side knee air bag module
    23. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    24. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    25. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    26. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    27. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    28. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    29. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    30. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    31. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    32. Shift lever knob (MTX)
    33. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    34. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    35. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    36. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    37. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    38. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    39. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    40. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
  24. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
