Fuel-filler Lid Opener

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (LH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  2. Remove the nut.

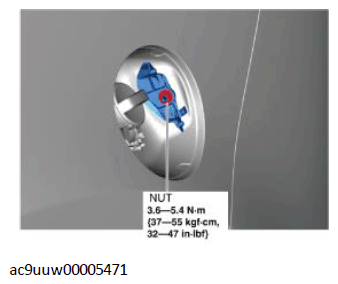

    Fig 1: Fuel-Filler Lid Opener Nut With Torque Specifications
    G11432693Courtesy of MAZDA MOTORS CORP.
  3. While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

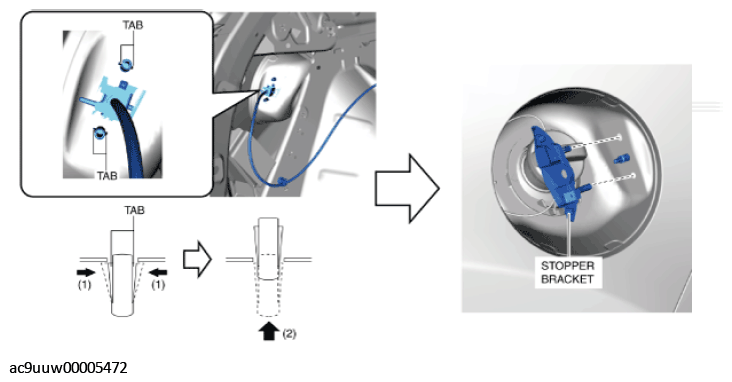

    Fig 2: Pressing Tabs Of Stopper Bracket
    G11432694Courtesy of MAZDA MOTORS CORP.
  4. Detach all the stopper bracket tabs from the body and remove the stopper bracket.
  5. Remove the fuel-filler lid opener in the direction of the arrow.

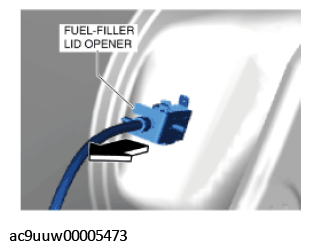

    Fig 3: Removing Fuel-Filler Lid Opener
    G11432695Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.
    Fig 4: Disconnecting Fuel-Filler Lid Opener Cable From Fuel-Filler Lid Opener
    G11432696Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
