Seats Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

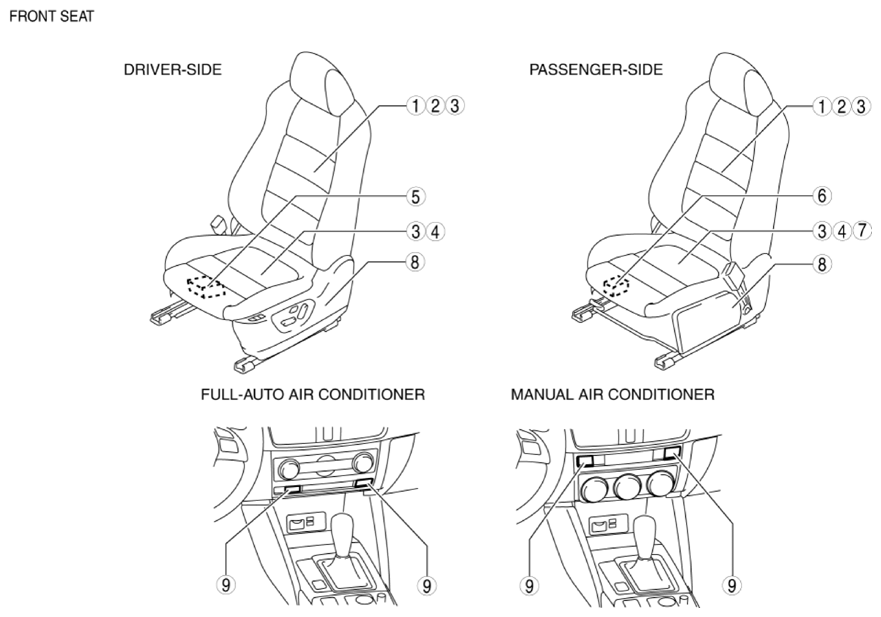

Fig 1: Front Seat (Driver And Passenger Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION .) (See FRONT TILT MOTOR INSPECTION .) (See SLIDE MOTOR REMOVAL/INSTALLATION .) (See SLIDE MOTOR INSPECTION .) (See LIFT MOTOR REMOVAL/INSTALLATION .) (See LIFT MOTOR INSPECTION .) (See RECLINER MOTOR INSPECTION .)
2	Front seat back (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT MOTOR REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT MOTOR INSPECTION .)
3	Seat warmer unit (See SEAT WARMER UNIT INSPECTION .)
4	Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See FRONT SEAT CUSHION FRAME REMOVAL/INSTALLATION .) (See FRONT SEAT ADJUSTER UNIT REMOVAL/INSTALLATION .) (See FRONT SEAT RAIL GUIDE COVER REMOVAL/INSTALLATION .) (See FRONT SEAT RAIL COVER REMOVAL/INSTALLATION .)
5	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .) (See POSITION MEMORY CONTROL module inspection .)
6	Seat warmer control unit (See seat warmer control unit removal/installation .) (See SEAT WARMER CONTROL UNIT INSPECTION .)
7	Occupancy sensor (See OCCUPANCY SENSOR inspection .)
8	Front seat side cover (See front seat side cover removal/installation .) (See power seat switch removal/installation .) (See power seat switch inspection .) (See position memory switch removal/installation .) (See position memory switch inspection .)
9	Seat warmer switch (See SEAT WARMER SWITCH REMOVAL/INSTALLATION .)

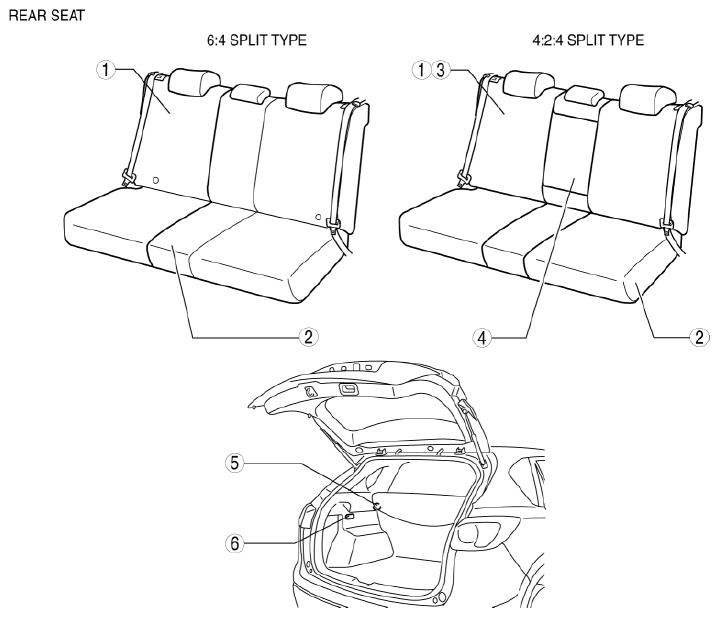

Fig 2: Rear Seat (Split Types)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION .)
2	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
3	Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
4	Rear seat center armrest (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION .)
5	Rear seat back striker (See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION .)
6	Remote handle lever (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION .)
