Rear Seat Center Armrest Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Operate the push knob (RH) and lower the rear seat back (RH).
Remove screw A.

Fig 1: Operating Push Knob
Courtesy of MAZDA MOTORS CORP.

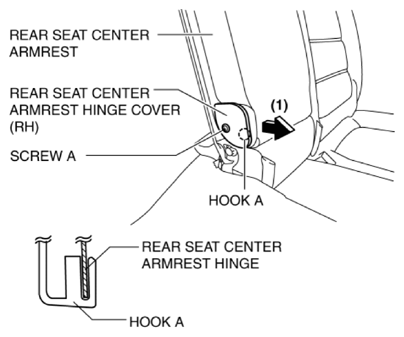

Remove the rear seat center armrest hinge cover (RH) in the direction of the arrow (1) shown in the figure while setting hook A aside.

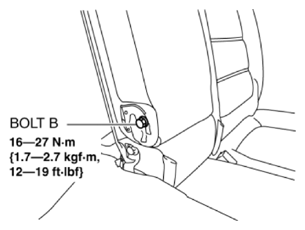

Remove bolt B.

Fig 2: Identifying Rear Seat Center Armrest Hinge Cover Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

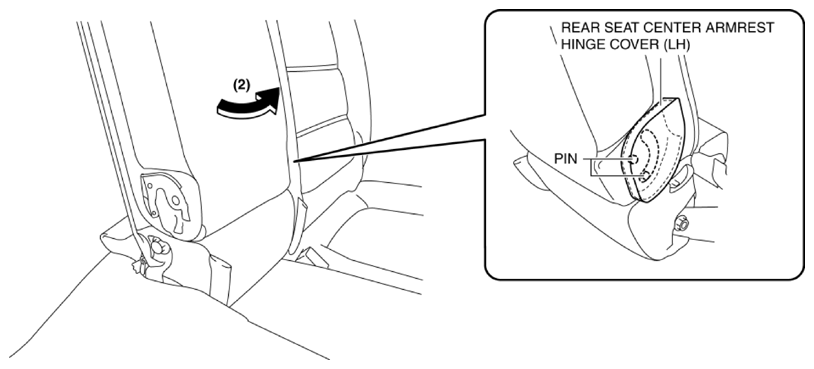

Remove the rear seat center armrest in the direction of the arrow (2) shown in the figure while setting the pins aside.

Fig 3: Removing Rear Seat Center Armrest
Courtesy of MAZDA MOTORS CORP.

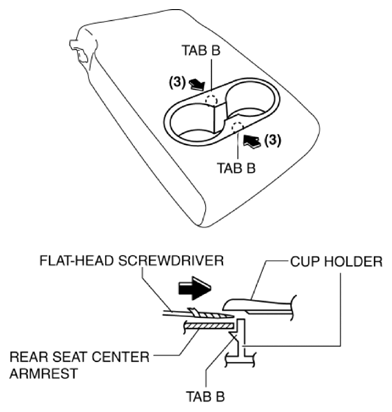

Using a flathead screwdriver wrapped in protective tape, insert it in the gap between the cup holder and the rear seat center armrest in the direction of the arrow (3) shown in the figure, and disengage tabs B.

Fig 4: Inserting Protective Tape In Gap Between Cup Holder And Rear Seat Center Armrest
Courtesy of MAZDA MOTORS CORP.

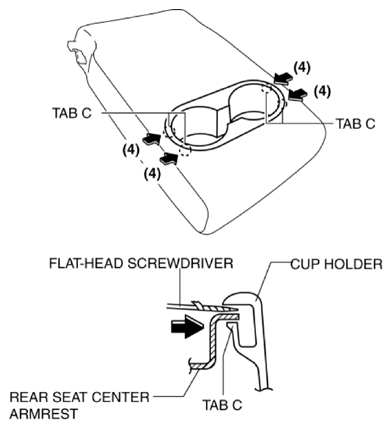

Using a flathead screwdriver wrapped in protective tape, insert it in the gap between the cup holder and the rear seat center armrest in the direction of the arrow (4) shown in the figure, and disengage tabs C.

Fig 5: Inserting Protective Tape In Gap Between Cup Holder And Rear Seat Center Armrest
Courtesy of MAZDA MOTORS CORP.
Remove the cup holder in the direction of the arrow (5) shown in the figure.

Fig 6: Removing Cup Holder
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
