Lumbar Support Motor Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the appropriate Service Information before handling the front seat (side air bag integrated). For TWO-STEP DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] . For STANDARD DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .

Disconnect the negative battery cable and wait for 1 min . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

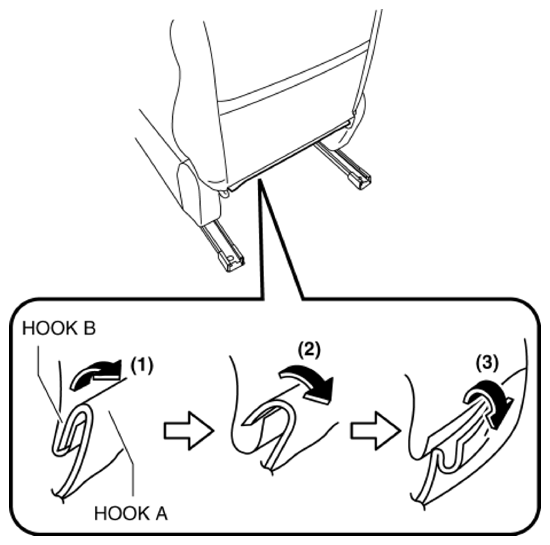

Slide hook A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hook B.

Fig 1: Sliding Lumbar Support Motor Hooks
Courtesy of MAZDA MOTORS CORP.

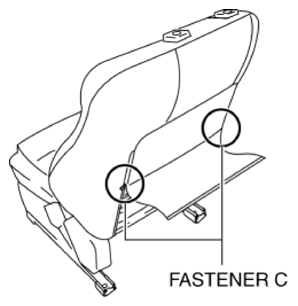

Open fasteners C.

Fig 2: Identifying Fastener
Courtesy of MAZDA MOTORS CORP.
Disconnect the lumber support motor connector.

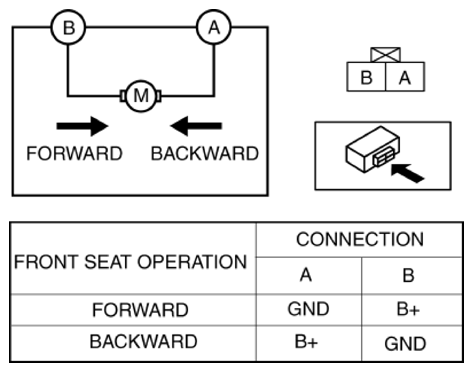

Apply battery positive voltage to the lumber support motor terminals and inspect the front seat back operation.

Fig 3: Lumbar Support Motor Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

If not as specified, replace the lumber support motor. (See LUMBAR SUPPORT MOTOR REMOVAL/INSTALLATION .)
