Rear Seat Back Striker Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Press the push knob to fold the rear seat back.
  3. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the bolts.

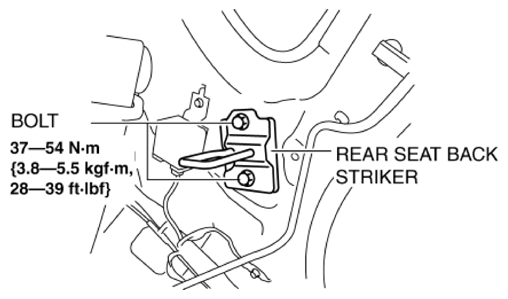

    Fig 1: Identifying Rear Seat Back Striker Bolts With Torque Specifications
    G10938731Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear seat back striker.
  6. Install in the reverse order of removal.
