Front Seat Rail Cover Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

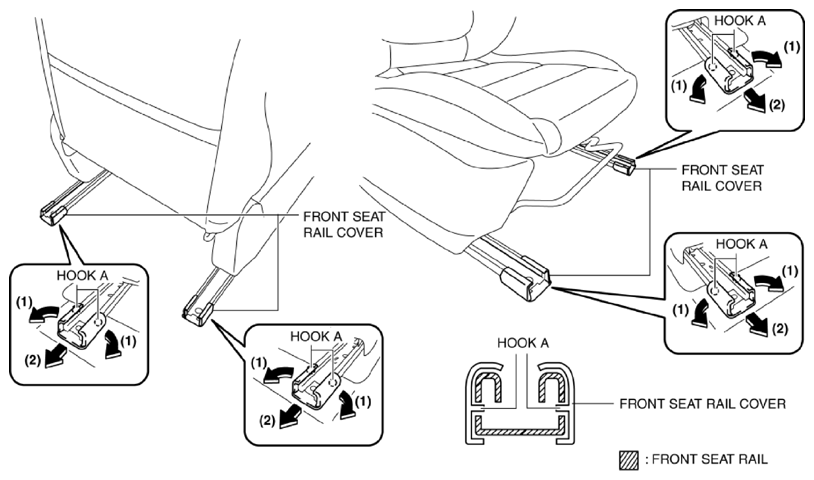

- Detach hook A while pulling the front seat rail cover in the direction of the arrow (1) and remove it in the direction of arrow (2) shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
