Rear Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear door (See REAR DOOR REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts shown in the figure.

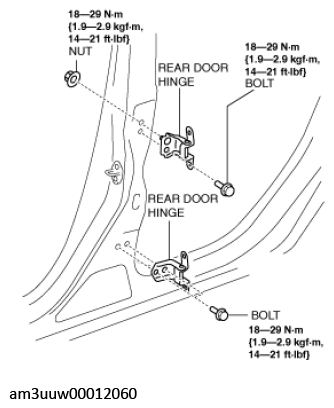

    Fig 1: Removing Bolt From Rear Door Hinge
    G11447676Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Remove the rear door hinge.
  6. Install in the reverse order of removal.
  7. Adjust the rear door. (See DOOR ADJUSTMENT .)
