Door Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap and height difference between the door and the body.
- If the measured value exceeds the standard clearance, adjust the door using the following procedure:
Loosen the door hinge installation bolts and adjust the door.

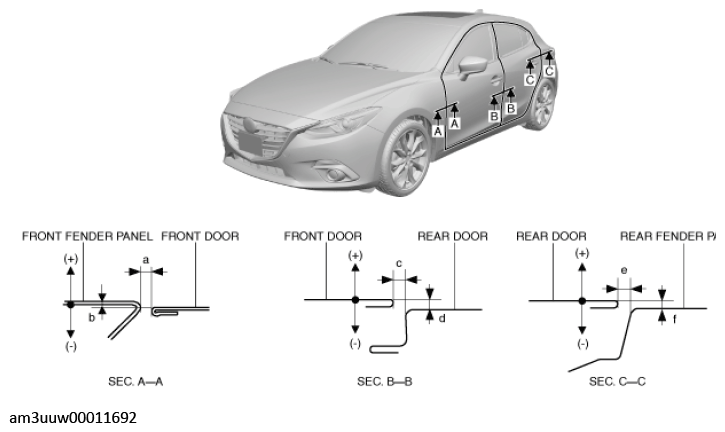

Fig 1: Measuring Gap Between Door And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: 2.5-4.3 mm {0.10-0.16 in}

b: -1.0-1.0 mm {-0.039-0.039 in}

c: 2.5-4.3 mm {0.10-0.16 in}

d: -1.0-1.0 mm {-0.039-0.039 in}

e: 2.5-4.3 mm {0.10-0.16 in}

f: -1.0-1.0 mm {-0.039-0.039 in}
Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION .) (See REAR DOOR REMOVAL/INSTALLATION .)
If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)
Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
