Water Hose: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Disconnect the wiring harness from the front crossmember. (Vehicle with i-ELOOP)

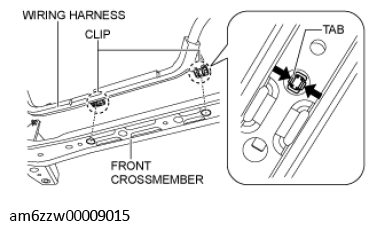

Fig 1: Wiring Harness Clip And Front Crossmember
Courtesy of MAZDA MOTORS CORP.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

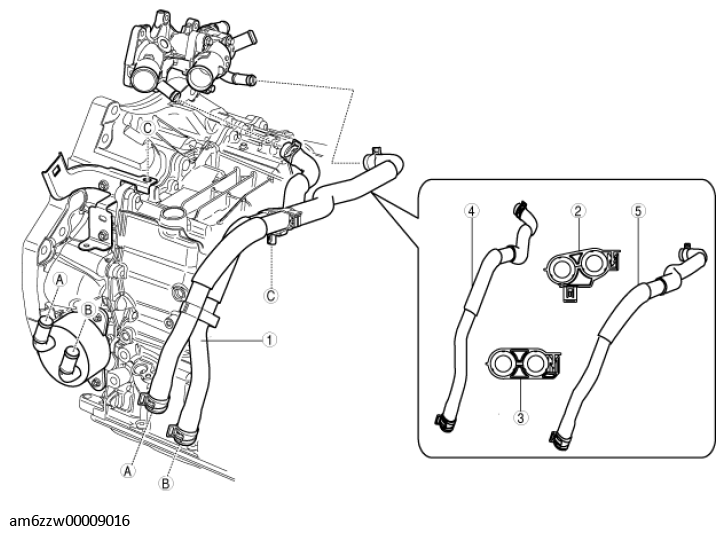

Fig 2: Exploded View Of Oil Cooler

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Water hose component (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water Hose No. 1 (outlet case side) Installation Note .)
2	Hose clip No.l
3	Hose clip No. 2
4	Water hose No. 1 (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water Hose No. 1 (outlet case side) Installation Note .)
5	Water hose No. 2 (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water Hose No. 2 (bypass pipe side) Installation Note .)
