Water Hose No. 1 (outlet case side) Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water hose No. 1 to the outlet case as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new water hose No. 1 and hose clamp are attached.

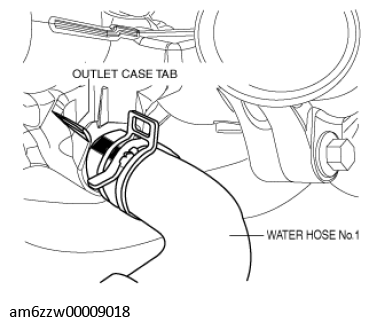

    Fig 1: Attaching Water Hose No 1 And Hose Clamp
    G11542592Courtesy of MAZDA MOTORS CORP.
  2. Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.
    Fig 2: Installing Hose Clamp Center A Of Hose Clamp Tab
    G09786181Courtesy of MAZDA MOTORS CORP.
    • Verify that the installation angle of the hose clamp is within the range shown in the figure.
  3. Verify that the hose clamp does not interfere with any other components.
