Water Hose No. 2 (bypass pipe side) Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water hose No. 2 to the bypass pipe as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new water hose No. 2 and hose clamp are attached.

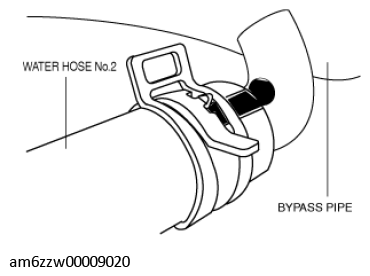

    Fig 1: Water Hose No 2 And Bypass Pipe
    G11542594Courtesy of MAZDA MOTORS CORP.
  2. Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.

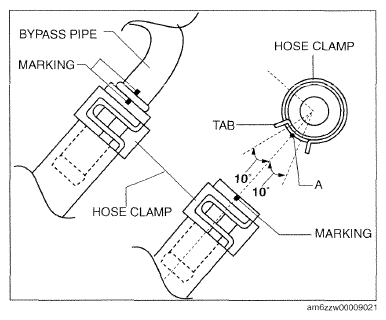

    Fig 2: Checking Hose Clamp Tab Range Measurement
    G09786183Courtesy of MAZDA MOTORS CORP.
    • Verify that the installation angle of the hose clamp is within the range shown in the figure.
  3. Verify that the hose clamp does not interfere with any other components.
