Front Fender Stay (RH)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
  3. Remove the fastener.

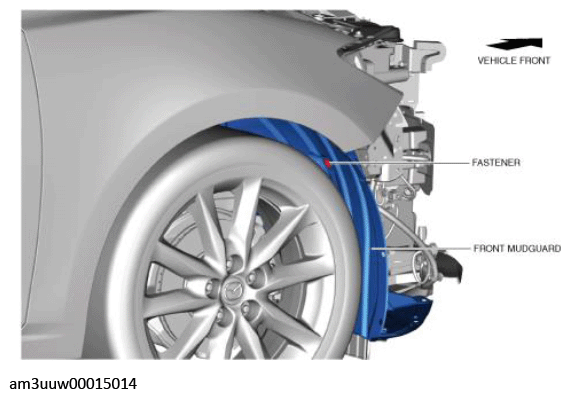

    Fig 1: Locating Front Fender Stay Fastener
    G11447578Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt shown in the figure and then remove body ground.

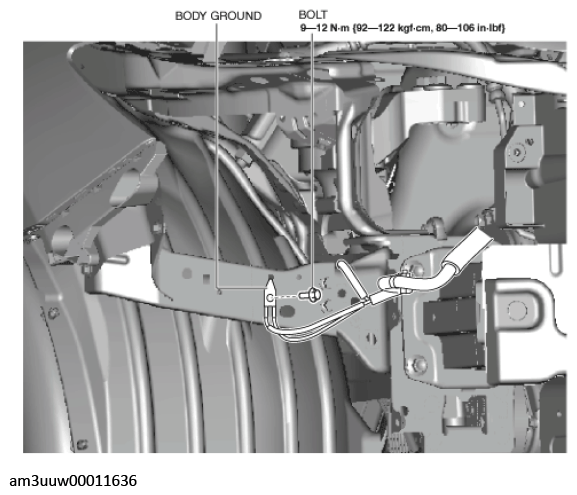

    Fig 2: Removing Front Fender Stay Body Ground
    G11447579Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts shown in the figure.

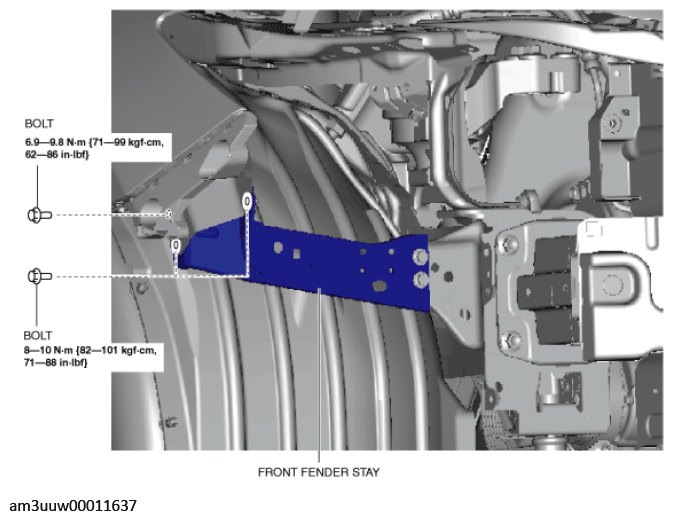

    Fig 3: Removing Front Fender Stay Bolts
    G11447580Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts shown in the figure and then remove the front fender stay.

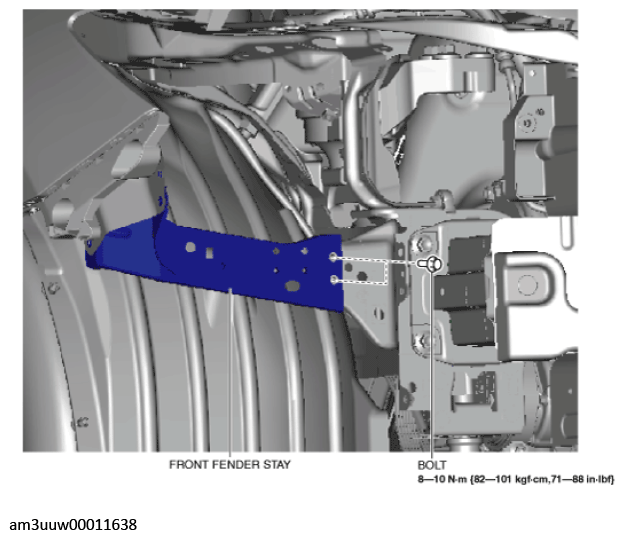

    Fig 4: Removing Front Fender Stay Bolts
    G11447581Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal. (See FRONT FENDER STAY NEWLY REPLACE NOTE .)
  8. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
  9. If a front fog light is removed from the front bumper, perform the front fog light aiming. (With front fog lights) (See FRONT FOG LIGHT AIMING .)
