Front Fender Stay Newly Replace Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the bolt contact area is painted when the front fender stay is newly replaced, it could cause a malfunction in the PCM. Before painting a newly replaced part, protect the bolt contact areas with masking tape.
  1. Before painting a newly replaced part, affix masking tape to the shaded areas shown in the figure.
    NOTE:
    • After installing the bolt, apply touch-up paint to the exposed base material area of the front fender stay.

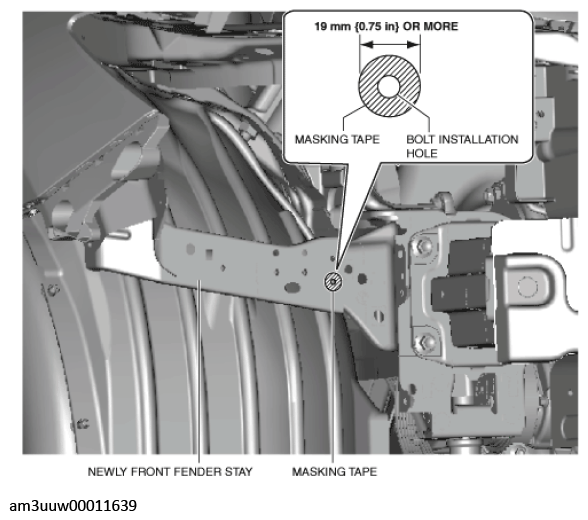

    Fig 1: Affixing Masking Tape To Shaded Areas
    G11447582Courtesy of MAZDA MOTORS CORP.
