Front Fender Stay (LH)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Capacitor (i-ELOOP) (See CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP] .)
  3. Remove the fastener.

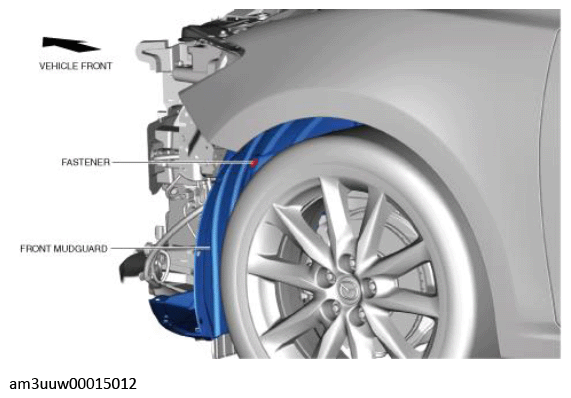

    Fig 1: Locating Front Fender Stay Fastener
    G11447575Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clips.

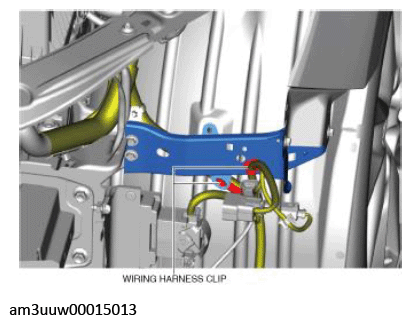

    Fig 2: Locating Front Fender Stay Wiring Harness Clips
    G11447576Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts shown in the figure.

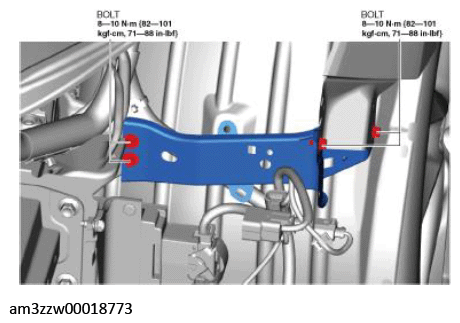

    Fig 3: Locating Front Fender Stay Bolts
    G11447577Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal. (See FRONT FENDER STAY NEWLY REPLACE NOTE .)
  7. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
  8. If a front fog light is removed from the front bumper, perform the front fog light aiming. (With front fog lights) (See FRONT FOG LIGHT AIMING .)
