Front Seat Belt With Lap Pre-tensioner Seat Belt: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Switch the ignition off.
Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the fastener.

Fig 1: Removing Front Seat Belt Fastener
Courtesy of MAZDA MOTORS CORP.
Remove the cover.
Remove the following parts:
1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
Remove the adjuster anchor cover. (See ADJUSTER ANCHOR COVER REMOVAL NOTE .)

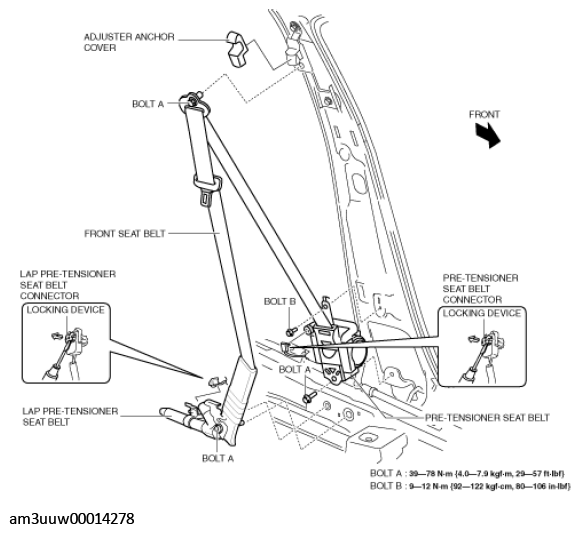

Fig 2: Removing Adjuster Anchor Cover - With Lap Pre-Tensioner Seat Belt
Courtesy of MAZDA MOTORS CORP.
Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
Disconnect the lap pre-tensioner seat belt connector.
Disconnect the pre-tensioner seat belt connector.
Remove bolt A.
Remove bolt B.
Remove the lap pre-tensioner seat belt.
Remove the pre-tensioner seat belt.
Remove the front seat belt.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)] .)
