Adjuster anchor cover removal note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

The adjuster anchor cover is installed to the adjuster anchor by engaging the tab.

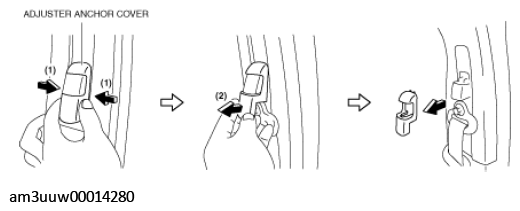

Fig 1: Pressing Adjuster Anchor Cover

Courtesy of MAZDA MOTORS CORP.

Press the adjuster anchor cover in the directions of arrows (1) shown in the figure and pull it in the direction of arrow (2).

Fig 2: Removing Adjuster Anchor Cover
Courtesy of MAZDA MOTORS CORP.
Remove the adjuster anchor cover.
