Hood Release Cable

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
    5. Front mudguard (Driver's side) (See MUDGUARD REMOVAL/INSTALLATION .)
    6. Front fender insulator No. 1 (See FRONT FENDER INSULATOR No. 1 REMOVAL/INSTALLATION .)
    7. Hood release lever (See HOOD RELEASE LEVER .)
  3. Remove the hood latch protector. (See HOOD LATCH REMOVAL/INSTALLATION .)
  4. Disconnect the hood release cable from the hood latch.
  5. Remove the hood release cable from clip.

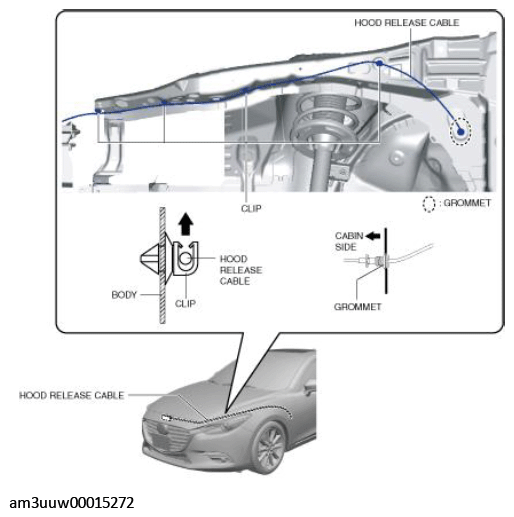

    Fig 1: Removing Hood Release Cable From Clip
    G11467722Courtesy of MAZDA MOTORS CORP.
  6. Press the grommet into the cabin side.
  7. Remove the hood release cable from the cabin side.
  8. Install in the reverse order of removal.
