Dashboard Removal/Installation: Removal

WARNING:
  1. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    7. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    8. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    9. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    10. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    11. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    12. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    13. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
    14. Center display component (With center display) (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    15. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    16. Meter hood No. 2 (With active driving display) (See METER HOOD REMOVAL/INSTALLATION .)
    17. Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
    18. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    19. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    20. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    21. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    22. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    23. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    24. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    25. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    26. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    27. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    28. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    29. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    30. Knee bolster (With knee bolster) (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    31. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)
    32. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
    33. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    34. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    35. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    36. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    37. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.] .) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    38. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
    39. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
    40. Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    41. Rear vent duct No. 2 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    42. Rear vent duct No. 1 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    43. Shift lever component (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    44. Selector lever component (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)

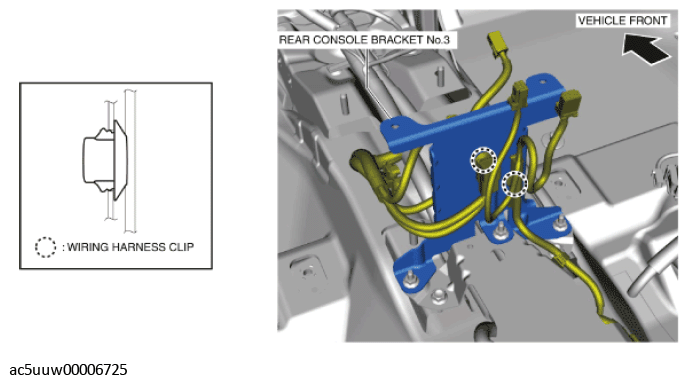

  3. Remove the wiring harness clips.
    Fig 1: Rear Console Bracket No. 3 And Wiring Harness Clip
    G11427862Courtesy of MAZDA MOTORS CORP.

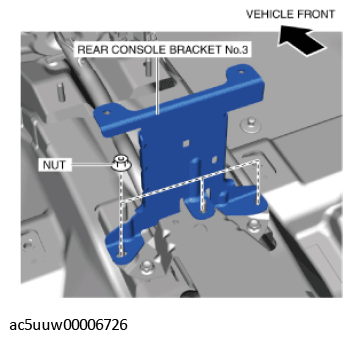

  4. Remove the nuts.
    Fig 2: Rear Console Bracket No. 3 And Nuts
    G11427863Courtesy of MAZDA MOTORS CORP.
  5. Remove rear console bracket No. 3.
  6. Remove the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
  7. Remove the electric parking brake control module bracket. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)

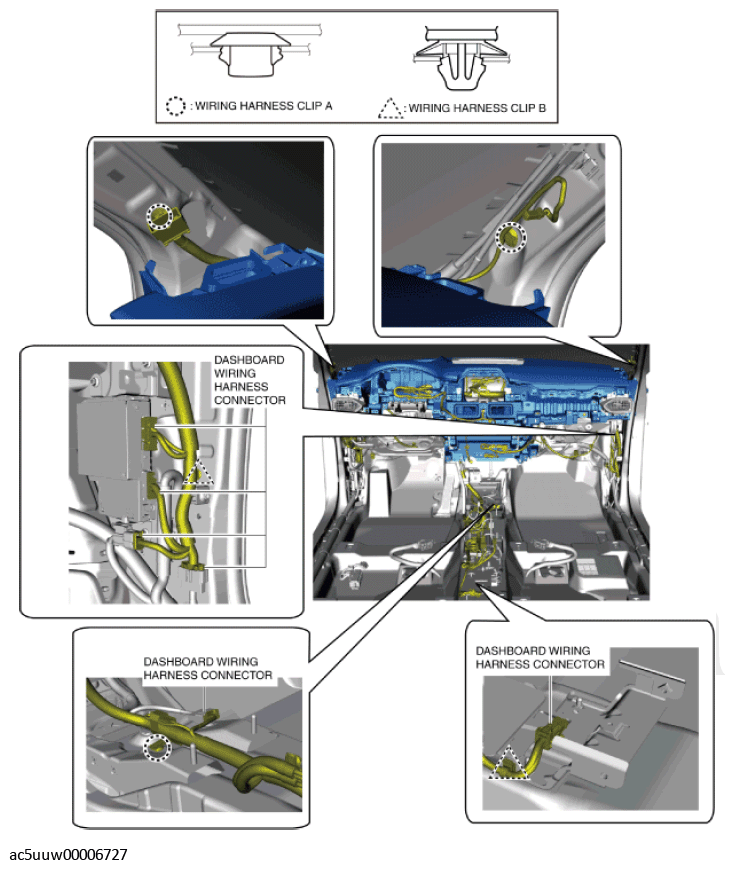

  8. Disconnect the dashboard wiring harness connectors and remove wiring harness clips A and B. (With center display)
    Fig 3: Dashboard Wiring Harness Connectors And Clips (With Center Display)
    G11427864Courtesy of MAZDA MOTORS CORP.

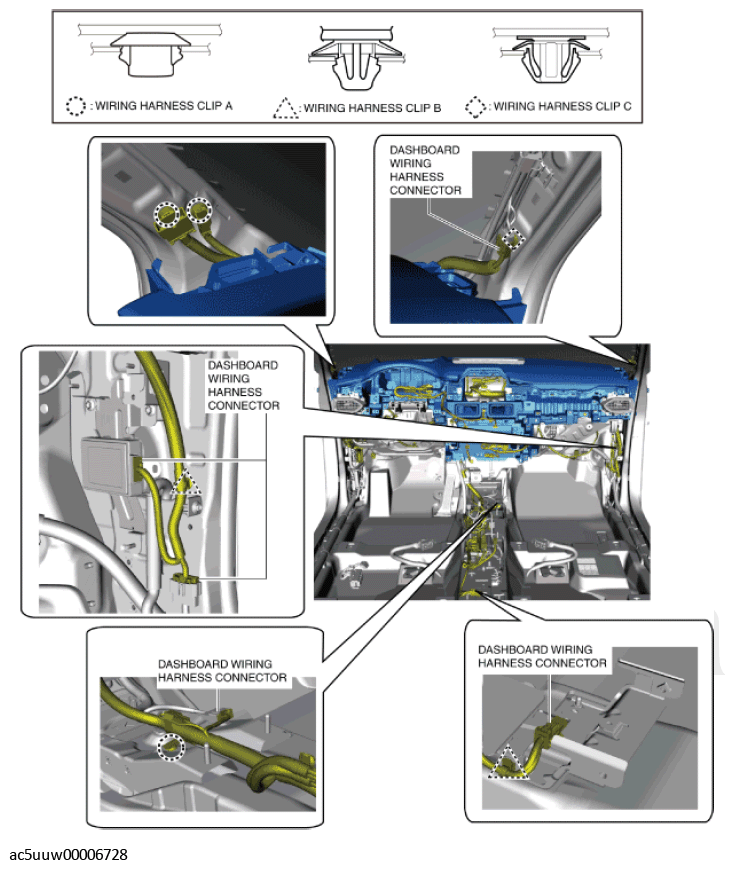

  9. Disconnect the dashboard wiring harness connectors and remove wiring harness clips A, B and C. (Without center display)
    Fig 4: Dashboard Wiring Harness Connectors And Clips (Without Center Display)
    G11427865Courtesy of MAZDA MOTORS CORP.
  10. Remove the bolts.

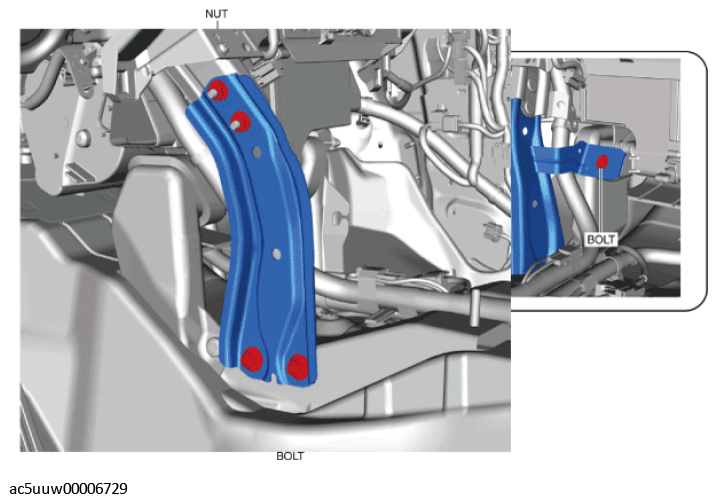

    Fig 5: Dashboard Bracket Nuts And Bolts
    G11427866Courtesy of MAZDA MOTORS CORP.
  11. Remove the nuts.
  12. Remove the dashboard bracket.

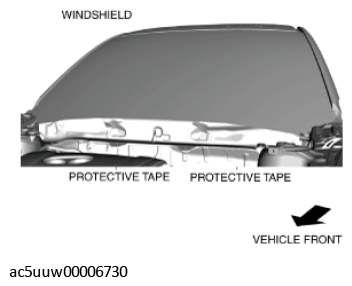

  13. To prevent damage to the windshield, apply protective tape to the position shown in the figure.
    Fig 6: Windshield Protective Tape Applying Position
    G11427867Courtesy of MAZDA MOTORS CORP.

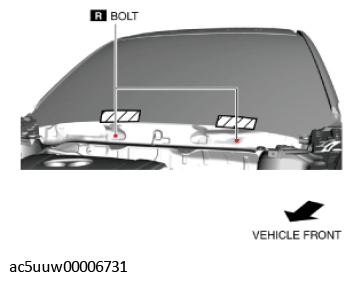

  14. Remove the bolts.
    Fig 7: Dashboard Bolts
    G11427868Courtesy of MAZDA MOTORS CORP.

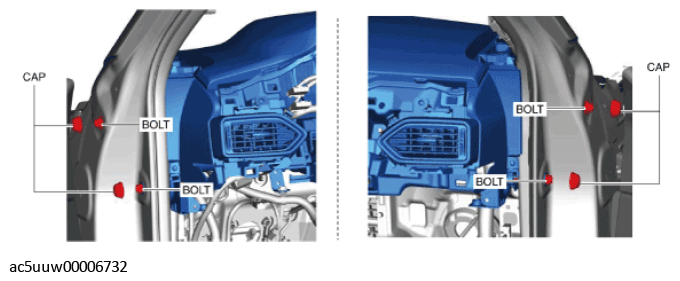

  15. Remove the caps and the bolts.
    Fig 8: Dashboard Caps And Bolts
    G11427869Courtesy of MAZDA MOTORS CORP.

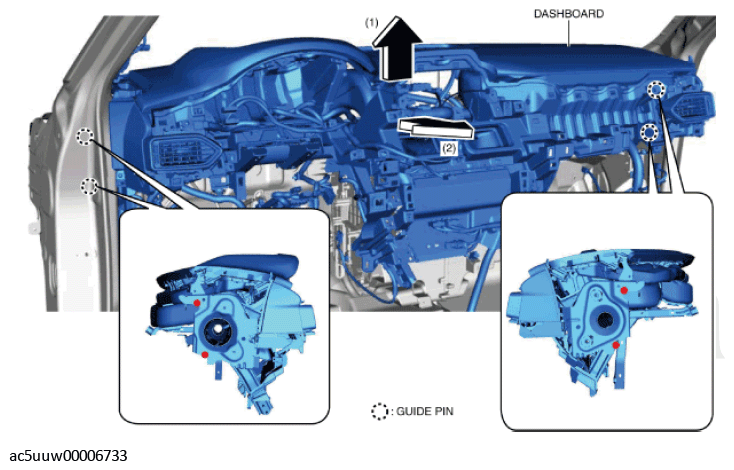

  16. Lift the dashboard up in the direction of arrow (1) shown in the figure and remove it from the guide pins on the vehicle body sides, and pull out the dashboard in the direction of arrow (2).
    Fig 9: Removing Dashboard From Guide Pins On Vehicle Body Sides
    G11427870Courtesy of MAZDA MOTORS CORP.
  17. Rotate the dashboard in the direction shown in the figure.

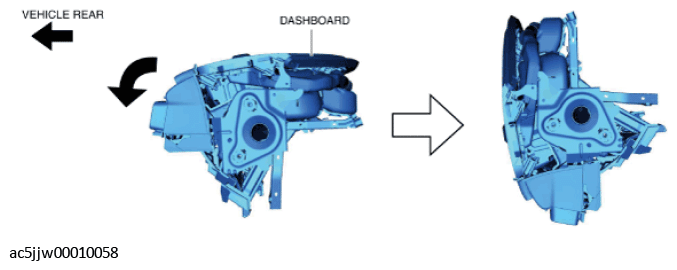

    Fig 10: Rotating Dashboard
    G11427871Courtesy of MAZDA MOTORS CORP.
  18. Remove the dashboard from either the driver-side or passenger-side front door opening.
