Rear Vent Duct Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the fastener.

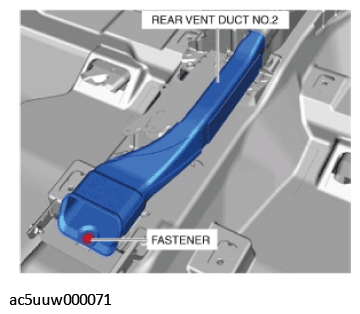

    Fig 1: Rear Vent Duct No 2 And Fasteners
    G11430269Courtesy of MAZDA MOTORS CORP.
  4. Remove rear vent duct No. 2.
  5. Remove the fastener.

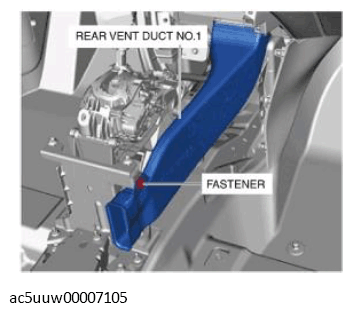

    Fig 2: Rear Vent Duct No 1 And Fasteners
    G11430270Courtesy of MAZDA MOTORS CORP.
  6. Remove rear vent duct No. 1.
  7. Install in the reverse order of removal.
