Sliding Door Stopper Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the bolts, then remove the sliding door stopper.

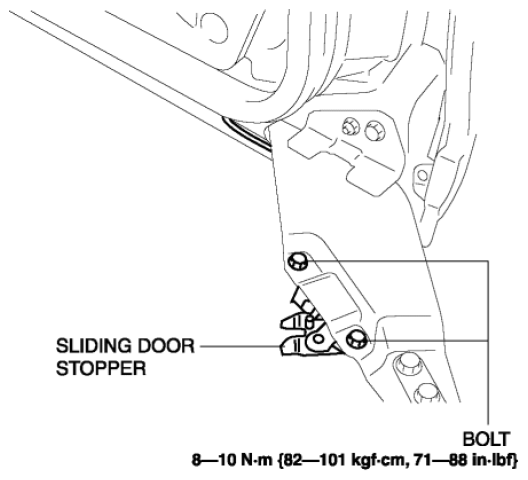

    Fig 1: Sliding Door Stopper And Bolt With Torque Specifications
    G08152780
  3. Disconnect the sliding door stopper cable from the sliding door stopper.

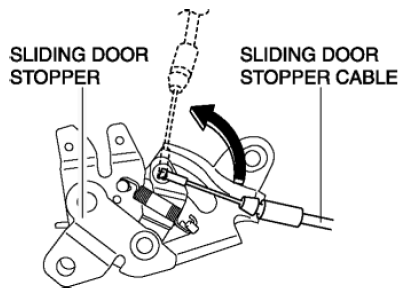

    Fig 2: Disconnecting Sliding Door Stopper Cable From Sliding Door Stopper
    G08152781
  4. Remove the following parts:
    1. Side door garnish. (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door pad. (See SLIDING DOOR PAD REMOVAL/INSTALLATION .)
  5. Disconnect the sliding door stopper cable from the remote controller.

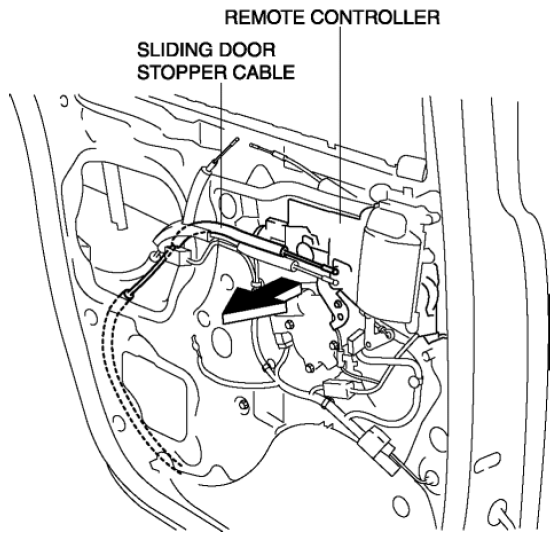

    Fig 3: Disconnecting Sliding Door Stopper Cable From Remote Controller
    G08152782
  6. Disconnect the sliding door stopper cable from the clip.

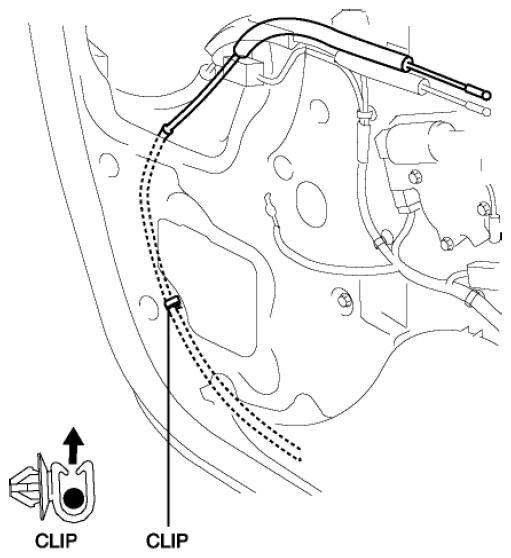

    Fig 4: Disconnecting Sliding Door Stopper Cable From Clip
    G08152783
  7. Pull out the sliding door stopper cable from the sliding door.

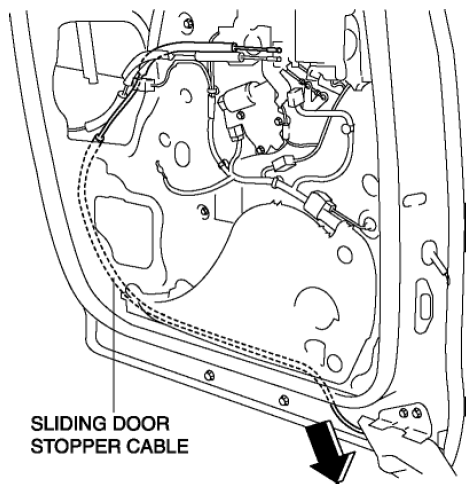

    Fig 5: Pulling Out Sliding Door Stopper Cable From Sliding Door
    G08152784
  8. Install in the reverse order of removal.
