Sliding Door Lock Actuator Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    5. Remote controller (See REMOTE CONTROLLER REMOVAL/INSTALLATION .)
    6. Sliding door lock actuator (See SLIDING DOOR LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Connect the sliding door lock actuator terminals to the battery positive voltage and the ground, and verify that the sliding door lock actuator operates as indicated in the table.
    Terminal Operation
    A B
    B+ Ground Unlock
    Ground B+ Lock

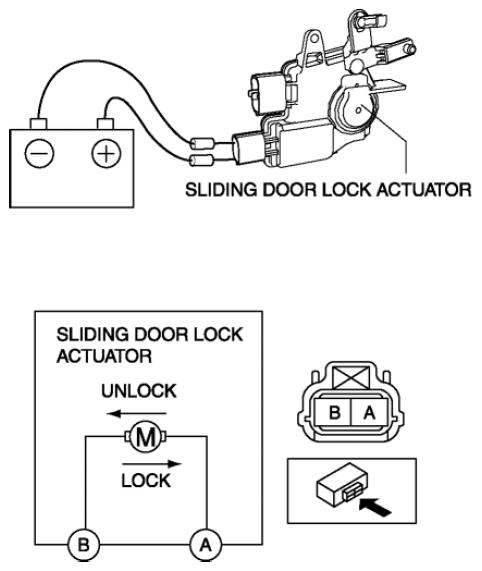

    Fig 1: Connecting Sliding Door Lock Actuator Terminals To Battery Voltage And Ground
    G08153084
    • If the sliding door lock actuator does not operate as indicated in the table, replace it.
