Sliding Door Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    5. Remote controller (See REMOTE CONTROLLER REMOVAL/INSTALLATION .)
  3. Remove the screw.

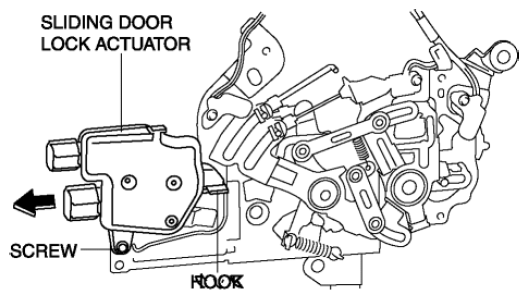

    Fig 1: Pulling Sliding Door Lock Actuator And Screw
    G08153083
  4. Pull the sliding door lock actuator in the direction of the arrow shown in the figure and remove it.
  5. Install in the reverse order of removal.
