Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front bumper. See FRONT BUMPER REMOVAL/INSTALLATION .
    2. Front combination light. See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .
    3. Front fender molding. See COWL GRILLE REMOVAL/INSTALLATION .
    4. Side step molding. See SIDE STEP MOLDING REMOVAL . See SIDE STEP MOLDING INSTALLATION .
    5. Front fender panel. See FRONT FENDER PANEL REMOVAL/INSTALLATION .
    6. Front door. See FRONT DOOR REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

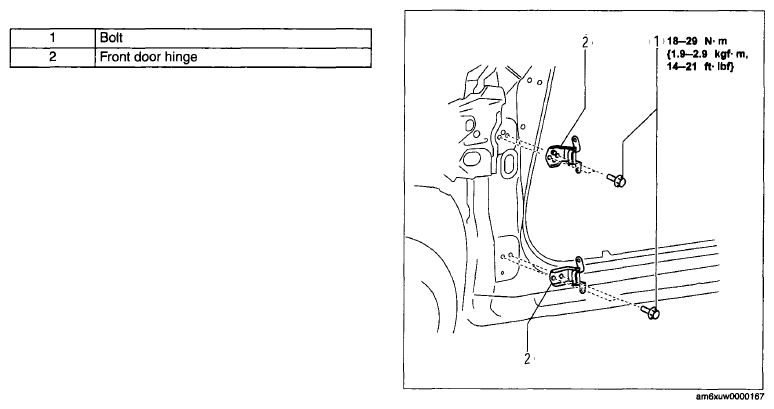

    Fig 1: Front Door Hinge With Mounting Bolts Torque Specifications
    G06205695Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
