Side Step Molding Removal

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fastener A

Fig 1: Removing Fastener A
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners B

Fig 2: View Of Removing Fastener B
Courtesy of MAZDA MOTORS CORP.
Using the removal tool, disengage clip C in the direction of the arrow shown in the figure.

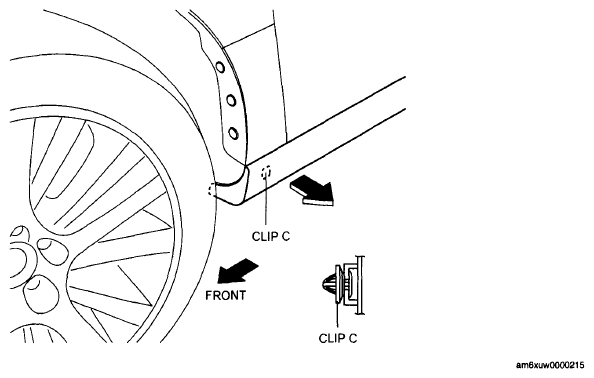

Fig 3: View Of Removing Clip C
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Leave the disengaged clip C in place in consideration of the servicing.
Using the removal tool, disengage clips C in the direction of the arrow shown in the figure.

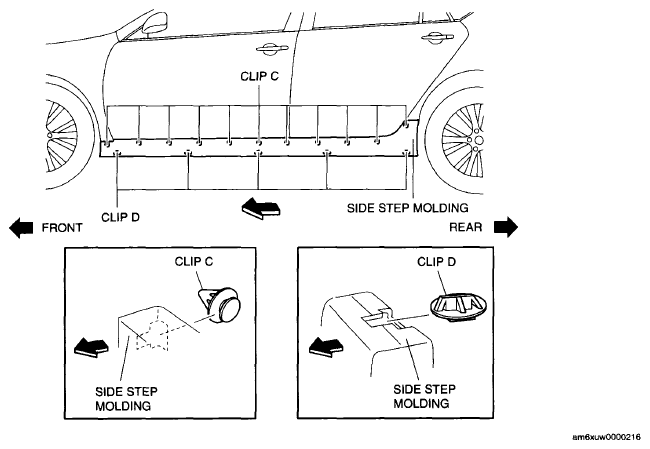

Fig 4: Illustrating Disengaging Clips C
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Leave the disengaged clips C in place in consideration of the servicing.
Slide the side step molding in the direction of the arrow shown in the figure and remove the side step molding from clips C and D.

Fig 5: Sliding Side Step Molding To Remove
Courtesy of MAZDA MOTORS CORP.
After removing the side step molding, remove clips C and D from the body using a fastener remover.
Using the removal tool, disengage clips E in the direction of the arrow shown in the figure.

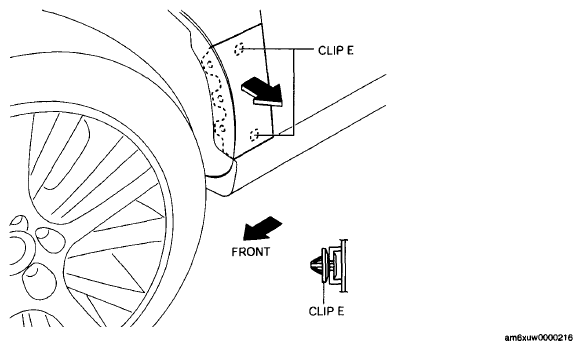

Fig 6: Identifying Clips E
Courtesy of MAZDA MOTORS CORP.
