Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front bumper. See FRONT BUMPER REMOVAL/INSTALLATION .
    2. Side step molding. See SIDE STEP MOLDING REMOVAL .
    3. Front fender molding. See COWL GRILLE REMOVAL/INSTALLATION .
    4. Front mudguard. See FRONT MUDGUARD REMOVAL/INSTALLATION .
  3. Remove bolts, then remove the front fender panel in the direction of the arrow shown in the figure.

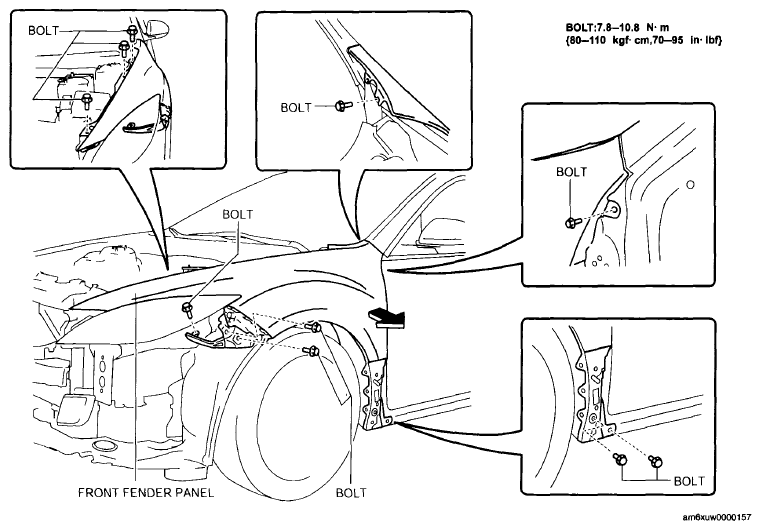

    Fig 1: View Of Front Fender Panel Removal
    G06200679Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
