Cowl Grille Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper arm and blade. See. WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION )
Remove the fastener A.

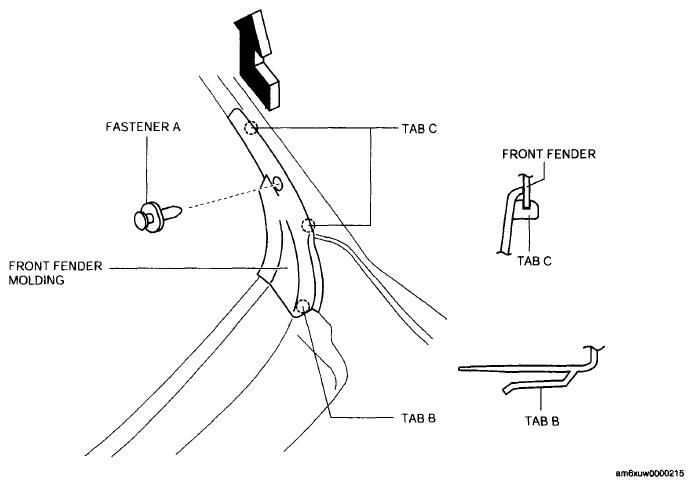

Fig 1: Identifying Fastener A
Courtesy of MAZDA MOTORS CORP.
Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tab B and tab C.
Disconnect the windshield washer hose from the joint pipe A. See. WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .
Remove the fasteners D.

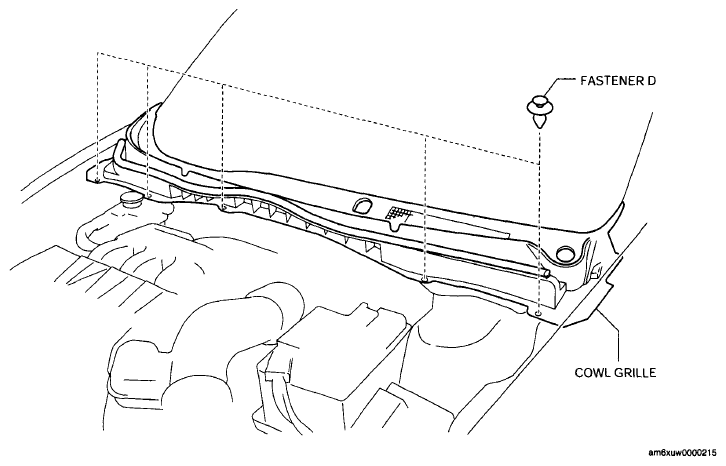

Fig 2: Identifying Fasteners D On Cowl Grille
Courtesy of MAZDA MOTORS CORP.
Pull the cowl grille in the direction of arrow (1) so that it is free from the pins E, pull tabs F in the direction of arrow (2).

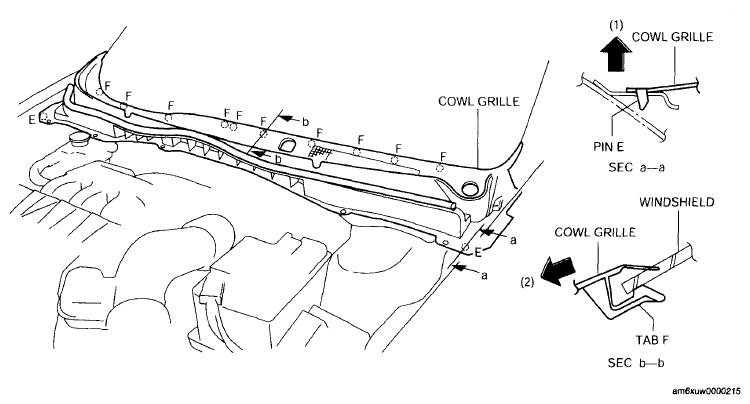

Fig 3: Illustrating Pulling Cowl Grille And Tabs
Courtesy of MAZDA MOTORS CORP.
Remove the cowl grille.
Install in the reverse order of removal.
