Side Step Molding Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

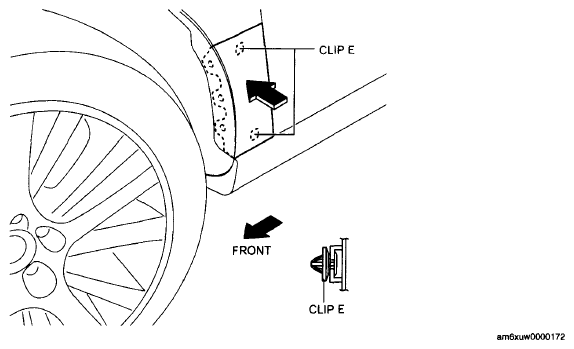

Install the side step molding while pushing the clips E installation area shown in the figure.

Fig 1: View Of Side Step Molding
Courtesy of MAZDA MOTORS CORP.

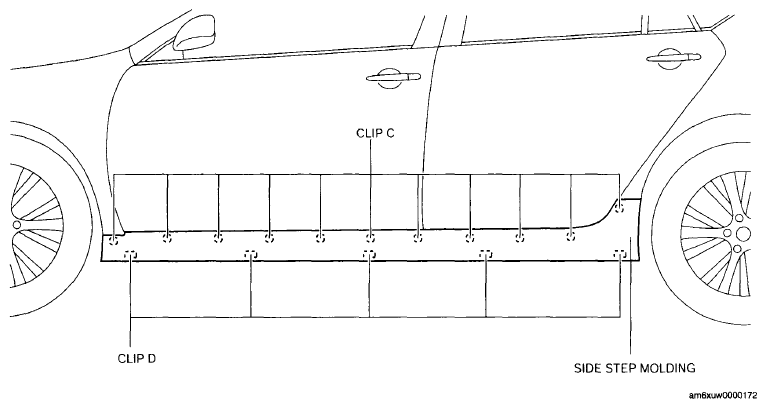

Install new clips C and D to the side step molding.

Fig 2: Identifying Clips C And D On Side Step Molding
Courtesy of MAZDA MOTORS CORP.
Install the side step molding while pushing the clip (C, D) installation area shown in the figure.

Fig 3: Identifying Clips On Side Step Molding
Courtesy of MAZDA MOTORS CORP.
Install the fasteners B.

Fig 4: View Of Installing Fasteners B
Courtesy of MAZDA MOTORS CORP.

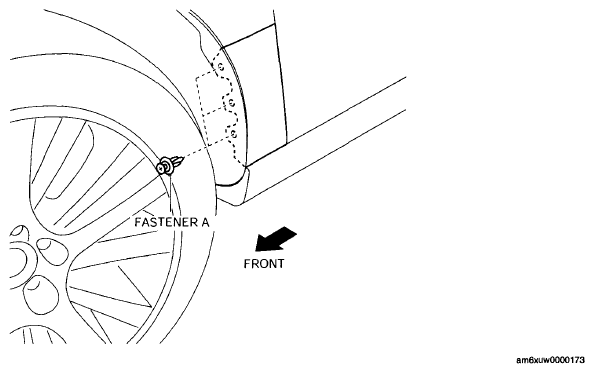

Install the fasteners A.

Fig 5: View Of Installing Fasteners A
Courtesy of MAZDA MOTORS CORP.
