Rear Door Lock Actuator Inspection

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    5. Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    6. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

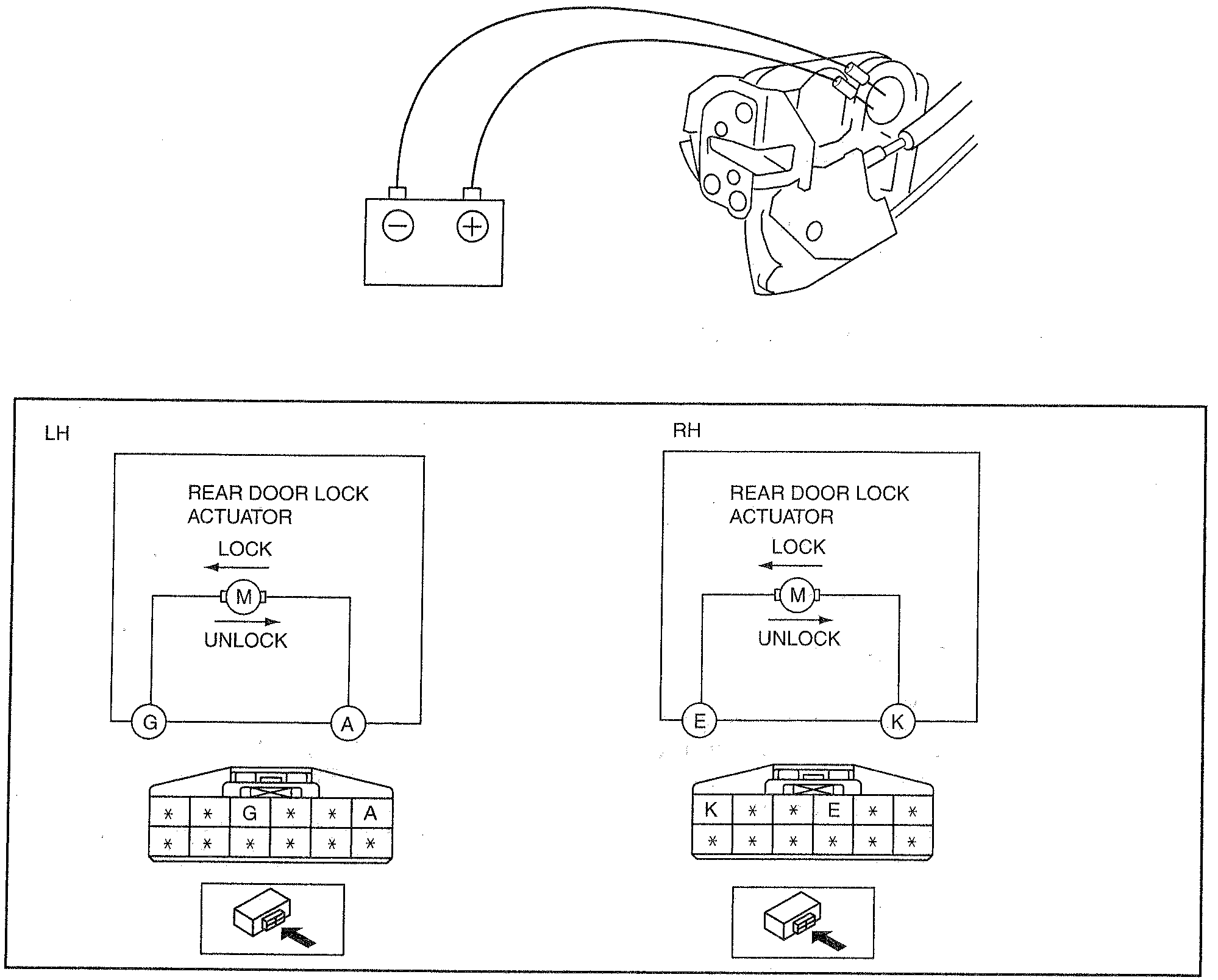

    Fig 1: Inspecting Rear Door Lock Actuator
    G00487943Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the rear door latch and lock actuator.
    REAR DOOR LATCH AND LOCK ACTUATOR OPERATION CONDITIONS

    Operation Terminal
    B+ Ground
    LOCK RH K E
    LH A G
    UNLOCK RH E K
    LH G A
