Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Pull the cover of inner handle and remove it while detaching tabs.

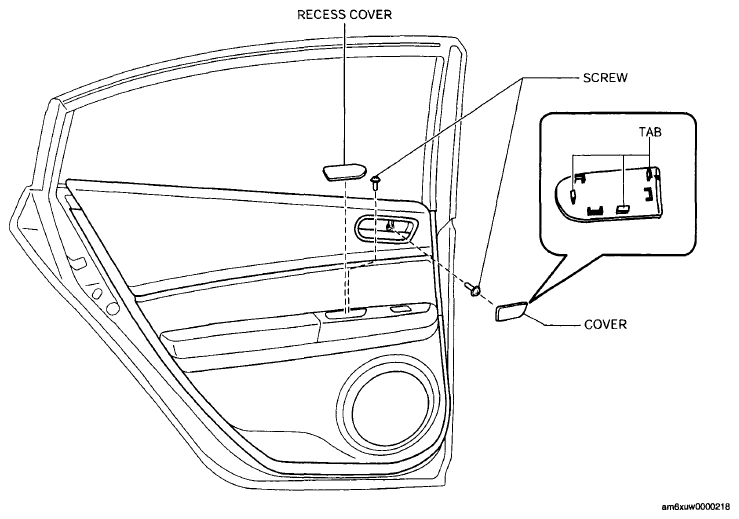

Fig 1: Identifying Door Trim Recess Cover, Screws And Tab
Courtesy of MAZDA MOTORS CORP.
Remove the recess cover.
Remove the screws.
Pull in the direction of the arrow shown in the figure and remove clips from the door inner panel using a fastener remover.

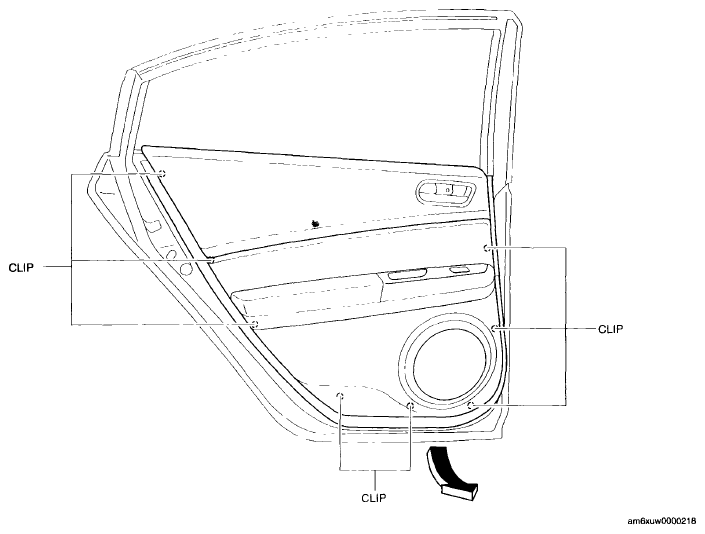

Fig 2: Pulling Rear Door Trim In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.
Remove the rear door trim in the direction of the arrow shown in the figure

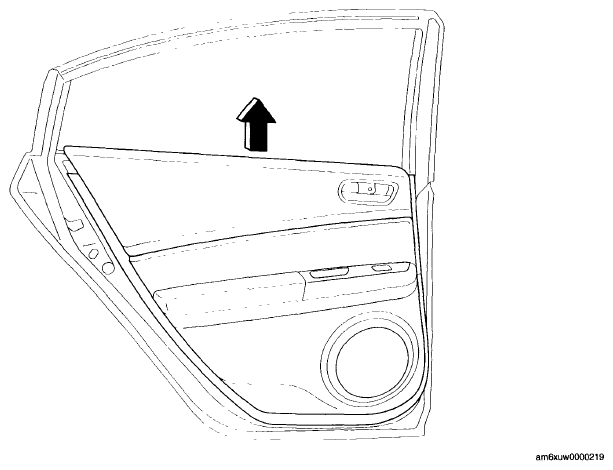

Fig 3: Removing Rear Door Trim
Courtesy of MAZDA MOTORS CORP.
Remove the inner handle and move the rear door trim in the direction of the arrow shown in the figure.

Fig 4: Removing Inner Handle And Rear Door Trim
Courtesy of MAZDA MOTORS CORP.
Turn the inner handle 90° in the direction of the arrow and remove it from the rear door trim.

Fig 5: Turning Inner Handle
Courtesy of MAZDA MOTORS CORP.
Disconnect the power window subswitch connector.
Install in the reverse order of removal.
