Rear Door Quarter Glass Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 144 mm {5.67 in}.
    2. Fig 1: Positioning Rear Door Glass
    G06200707Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the screw.
  5. Remove the hole plug
  6. Remove the bolt A.
  7. Remove the bolt B.
  8. Remove the rear door quarter glass guide.

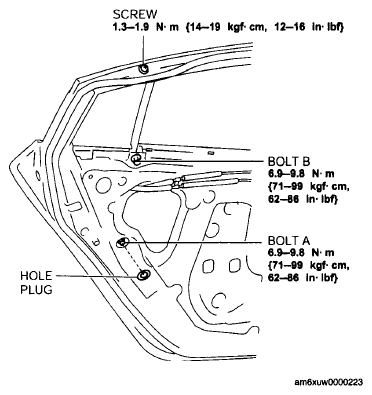

    Fig 2: Screw, Hole Plug & Mounting Bolts With Torque Specifications
    G06200708Courtesy of MAZDA MOTORS CORP.
  9. Slide the rear door quarter glass in the direction of the arrow (1) shown in the figure.
    10. Fig 3: Removing Rear Door Quarter Glass
    G06200709Courtesy of MAZDA MOTORS CORP.
  10. Remove the rear door quarter glass and weatherstrip as a single unit in the direction of the arrow (2) shown in the figure.
  11. Remove the rear door quarter glass from the weatherstrip.
    12. Fig 4: Removing Rear Door Quarter Glass From Weatherstrip
    G06200710Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
