Rear Door Module Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION .
    2. Rear door speaker. See REAR DOOR SPEAKER REMOVAL/INSTALLATION .
    3. Rear door quarter glass. See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .
    4. Rear door glass. See REAR DOOR GLASS REMOVAL/INSTALLATION .
  4. Remove the clips securing the rear door wiring harness from the rear door module panel.

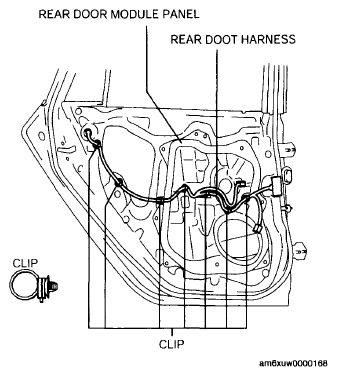

    Fig 1: Identifying Rear Door Module Panel, Harness And Clip
    G06205701Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the fastener.
  7. Remove the rear door module panel.
  8. Remove the rear power window motor. See POWER WINDOW MOTOR REMOVAL/INSTALLATION .
  9. Remove the rear power window regulator. See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .
  10. Install in the reverse order of removal.

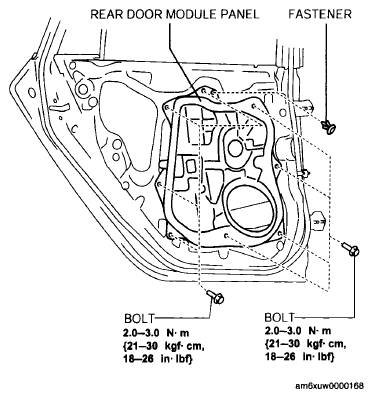

Fig 2: Rear Door Module Panel With Mounting Bolts Torque Specifications
G06205702Courtesy of MAZDA MOTORS CORP.
