Instrument Cluster Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. Replacing the Instrument cluster without performing the configuration procedure will result in system malfunction.
  1. Perform the instrument cluster configuration when replacing it. See INSTRUMENT CLUSTER CONFIGURATION .
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Front scuff plate (Driver side). See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    2. Front side trim (Driver side). See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    3. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    4. Decoration panel (Driver side). See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Hood release lever. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
    6. Meter hood. See METER HOOD REMOVAL/INSTALLATION .
  4. Remove in the order indicated in the table.

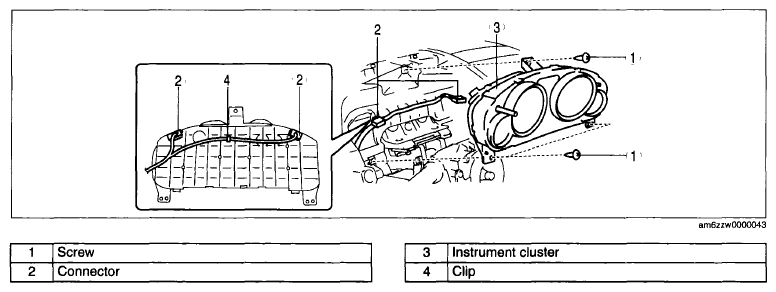

    Fig 1: Identifying Instrument Cluster, Connector And Clip
    G06201206Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Program the immobilizer system-related parts when replacing the instrument cluster. (With keyless entry system). See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .
    CAUTION:
    • The removed instrument cluster should be placed with the display side up to prevent grease from leaking from the meters.
      Fig 2: Identifying Instrument Cluster Condition
      G06201207Courtesy of MAZDA MOTORS CORP.
