Blind Spot Monitoring (BSM) Off Switch Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Front scuff plate (Driver side). See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
2. Front side trim (Driver side). See FRONT SIDE TRIM REMOVAL/INSTALLATION .
3. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
4. Decoration panel (Driver side). See DECORATION PANEL REMOVAL/INSTALLATION .
5. Hood release lever. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
6. Meter hood. See METER HOOD REMOVAL/INSTALLATION .
7. Lower panel (Driver side). See LOWER PANEL REMOVAL/INSTALLATION .
Remove the BSM OFF switch.

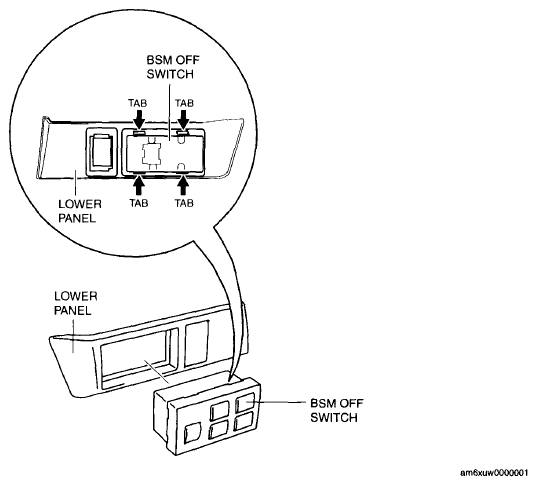

Fig 1: Removing BSM OFF Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
