Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    2. Driver-side front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    3. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    4. Driver-side decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Hood release lever. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
    6. Meter hood. See METER HOOD REMOVAL/INSTALLATION .

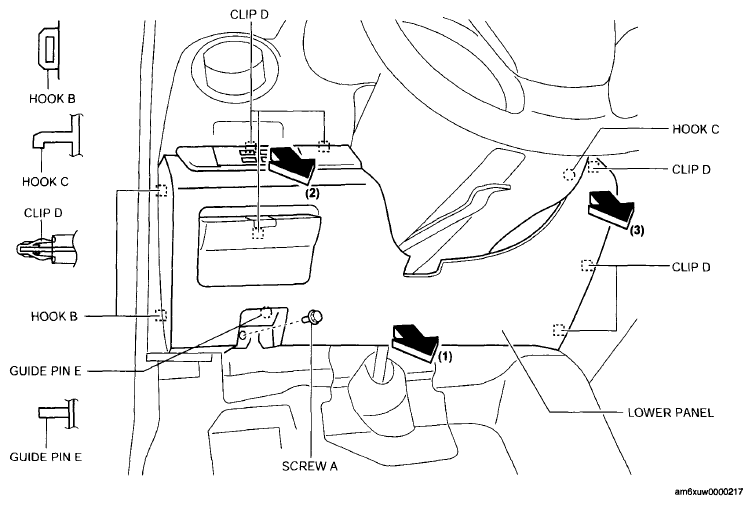

  3. Remove the screw A, pull the lower panel in the direction of the arrow in the order of (1) (2), (3) and remove the lower panel while detaching the hooks B, C, clips D and guide pin E.
    Fig 1: Removing/Installing Lower Panel
    G06199462Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the switch connector.
  5. Install in the reverse order of removal.
